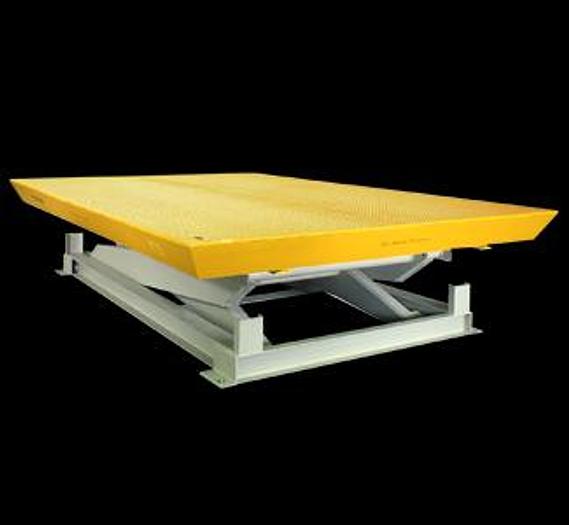

Heavy Duty Hydraulic Lift Tables

Heavy Duty Hydraulic Lift Tables

orCall 804.598.1780

Description

These heavy-duty hydraulic lift tables are ideal for cargo handling and lifting heavy industrial loads. Built in hydraulic overload relief protects personnel and structures. All Southworth DL Series lift tables feature heavy-plate platforms with structural reinforcements minimize deflection while the wide base provides increased rigidity and stability even when handling loads up to 25,000 lbs. Capacities up to 25000 Lbs. Raised Height up to 100" Collapsed Heights as low as 13.25" Platform Sizes up to 96" x 156" These heavy-duty hydraulic lift tables are ideal for cargo handling and lifting heavy industrial loads. Built in hydraulic overload relief protects personnel and structures. All Southworth DL Series lift tables feature heavy-plate platforms with structural reinforcements minimize deflection while the wide base provides increased rigidity and stability even when handling loads up to 25,000 lbs.

Specifications

ManufacturerSouthworld Products
ConditionNew
Dl20-3620000 lbs; 52"; 16"; 60" X 76"; 96" X 108"; 3.2; 460/3/60; 4000 lbs
Dl10-4810000 lbs; 61.25"; 13.25"; 47" x 76"; 84" x 108"; 3.2; 460/3/60; 3300 lbs
Dl15-4815000 lbs; 62.25"; 14.25; 60" x 76"; 85" x 108"; 3.2; 460/3/60; 4000 lbs
Dl25-4825000 lbs; 64"; 16"; 60" x 76"; 96" X 108"; 3.2; 460/3/60; 4800 lbs
Dl10-6010000 lbs; 76"; 16"; 60" x 102"; 96" x 104"; 3.2; 460/3/60; 4800 lbs
Dl12-6012000 lbs; 76"; 16"; 60" x 102"; 96" x 144"; 3.2; 460/3/60; 5100 lbs
Dl16-6016000 lbs; 76"; 16"; 60" x 102"; 96" x 144; 3.2; 460/3/60; 5300 lbs
Dl20-6020000 lbs; 82"; 22"; 60" x 120"; 96" x 144"; 3.2; 460/3/60; 6800 lbs
Dl20-7220000 lbs; 94"; 22"; 72" x 144"; 108" x 180"; 3.2; 460/3/60; 9700 lbs
Dl4-844000 lbs; 96"; 12"; 60" x 120"; 96" x 156"; 3.2; 460/3/60; 4200 lbs
Dl6-846000 lbs; 100"; 16"; 60" x 120"; 96" x 156"; 3.2; 460/3/60; 5000 lbs
Dl10-8410000 lbs; 100"; 16"; 60" x 120"; 96" x 156"; 3.2; 460/3/60; 5800 lbs
