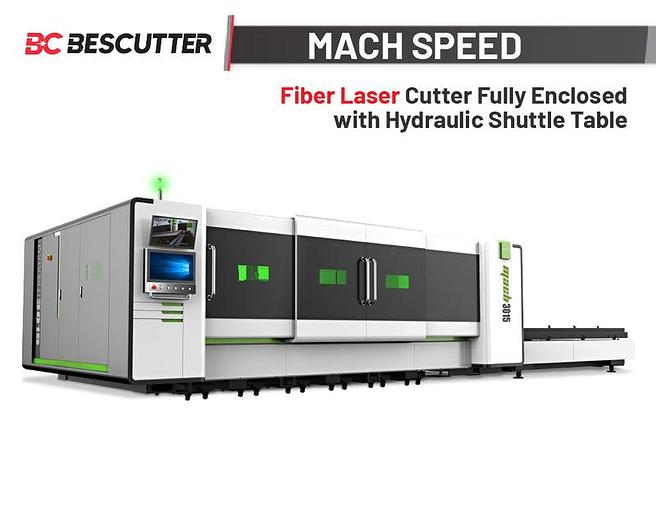

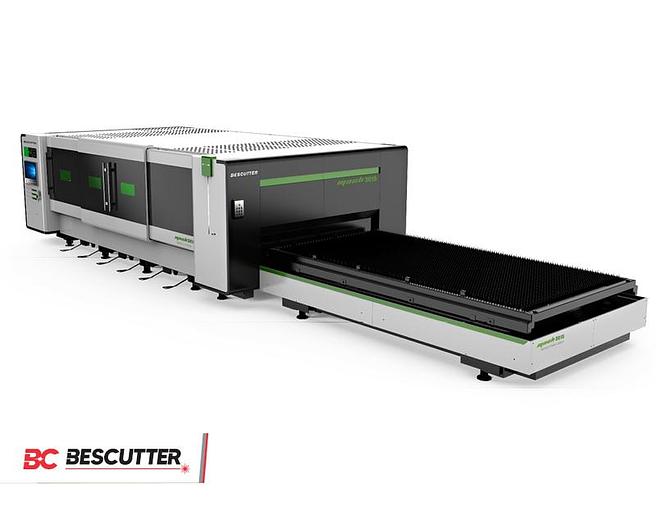

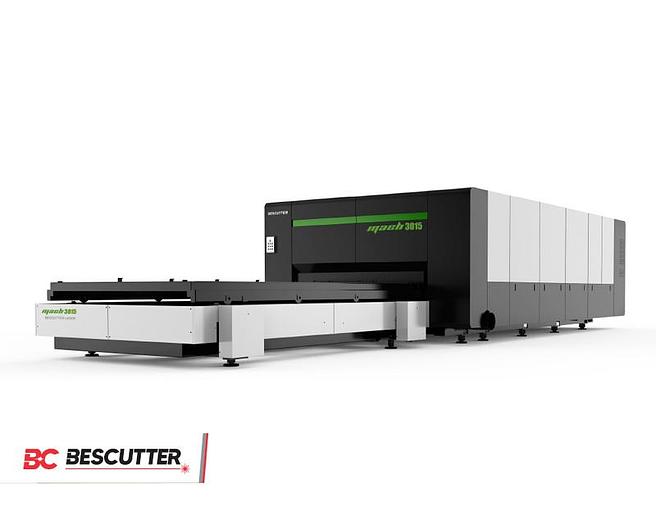

MACH SPEED 5'x10' | 6000W -20000W | Fiber Laser Cutter Fully Enclosed with Hydraulic Shuttle Table

MACH SPEED 5'x10' | 6000W -20000W | Fiber Laser Cutter Fully Enclosed with Hydraulic Shuttle Table

$380,000 (USD)

Description

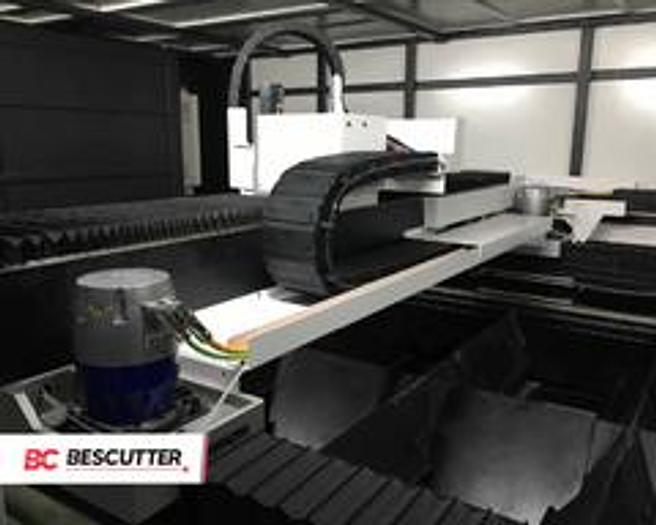

The MACH SPEED 5'x10' Fiber Laser Cutter offers a range of high performance options with a fully enclosed design, ensuring safety and efficiency in industrial environments. This advanced machine supports laser powers from 6000W to 20000W and includes a hydraulic shuttle table for seamless material handling. It accommodates a working area of 61" x 120", with optional sizes available up to 315" x 98.4", making it versatile for various cutting demands.


Equipped with PRECITEC laser heads and controlled by the reliable Beckhoff system, this cutter provides precise operations with a positioning accuracy of ±0.05 mm/m and a re-positioning accuracy of ±0.02 mm. The machine supports an exemplary maximum load weight of 1962 lb and boasts a maximum positioning acceleration of less than 0.373 mrad. The powerful X-Y-Z servo motors, combined with a maximum coordinated positioning speed of 2.4 G, ensure efficient and rapid production capabilities.


Constructed with robust materials, the unit weighs 28,200 lbs and measures 350" x 118" x 87". It uses reputable laser resonators from Hans Photonics, IPG, or Max Photonics, operating within a wavelength range of 1070-1080 nm. The laser’s output stability is ±2%, maintaining consistent performance with a beam quality of ≤4mm*mrad. Powered by a 400-460V supply, it guarantees reliability and throughput across demanding tasks.

Specifications

ManufacturerBescutter
ConditionNew
Stock Number00009
Working area61" x 120" (3050 x 1550 mm) Optional 157" x 78.7"/ 236" x 98.4"/ 315" x 98.4"
X,y,z-axis travel61" (3050 mm)/120" (1550 mm)/3.93" (100 mm)
X, y two-axis coordinated positioning speed (max)2.4 G
Positioning acceleration (max)<0.373 mrad
Positioning accuracy±0.05 mm/m
Re-positioning accuracy±0.02 mm
Mmaximum load weight1962 lb (890 kg)
Laser resonatorHans Photonics, IPG or Max Photonics

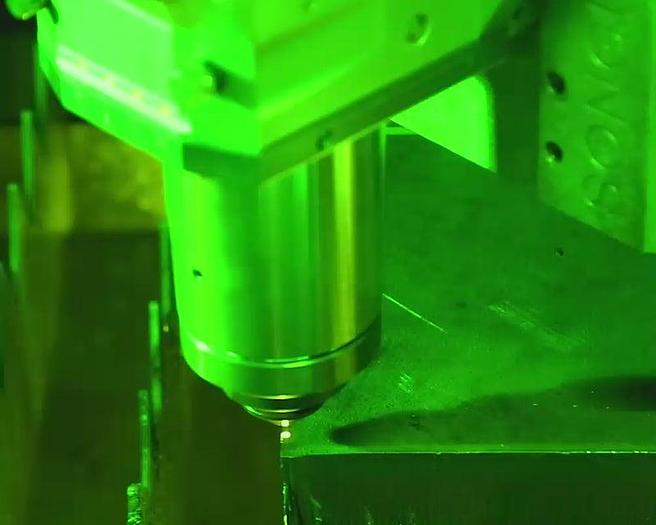

Laser headPRECITEC (Germany Brand)

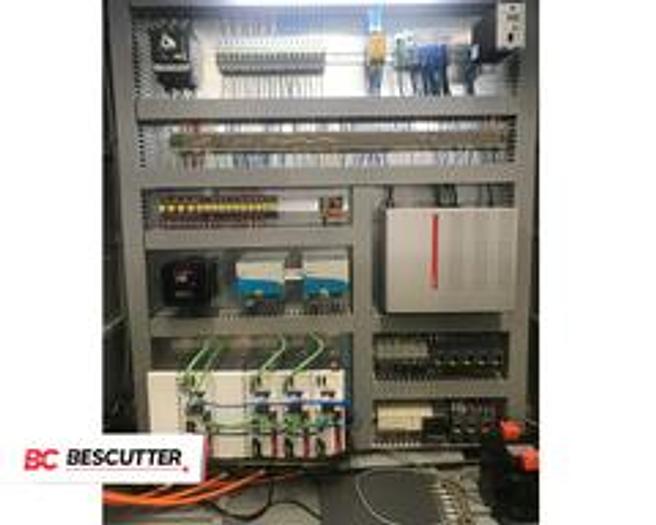

Controlling systemBeckhoff (Germany Brand)
X-y-z servo motorsX-2x9700W; Y- 1x6880W ; Z-1x940W
Machine weight28200 lbs (12800 kg)
Dimensions350"x 118" x 87" (8900 x 3000 x 2200 mm)
Ipg-yls specificationYLS-6000
Laser modeCW,QCW
Wavelength1070-1080nm
Standard output laser power6000W
Laser beam quality≤4mm*mrad
Modulation speed5kHz
Delivery fiber core diameter≥50μm
Output stability±2%
Power supply400-460V/3P+PE@50-60Hz
