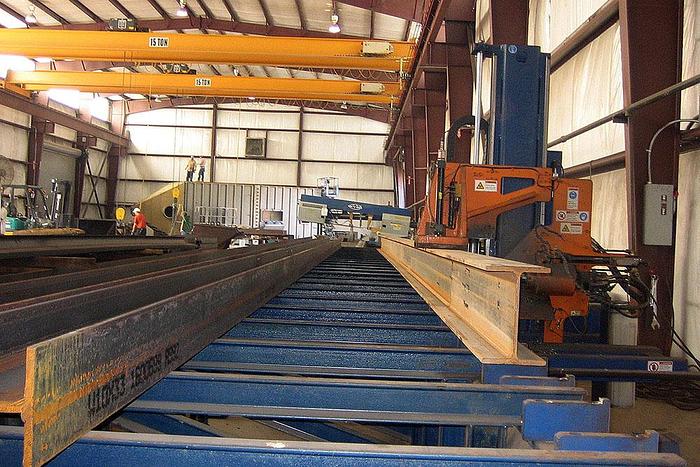

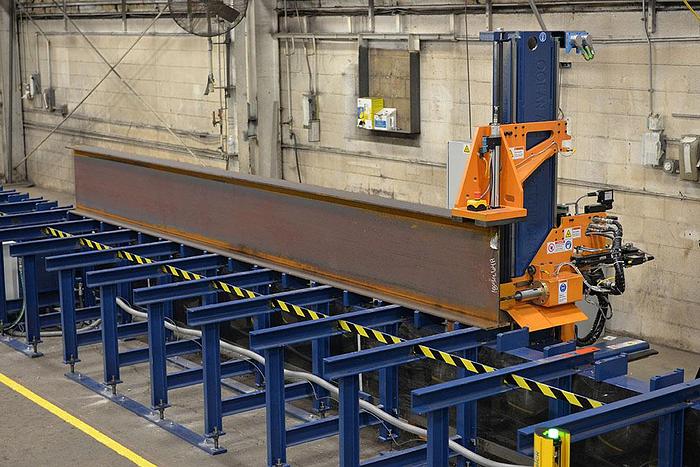

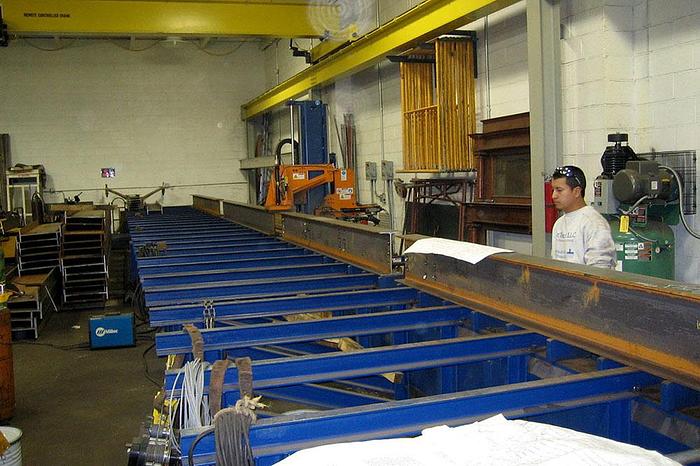

OCEAN AVENGER SINGLE SPINDLE BEAM DRILL LINE

OCEAN AVENGER SINGLE SPINDLE BEAM DRILL LINE

orCall 804.598.1780

Description

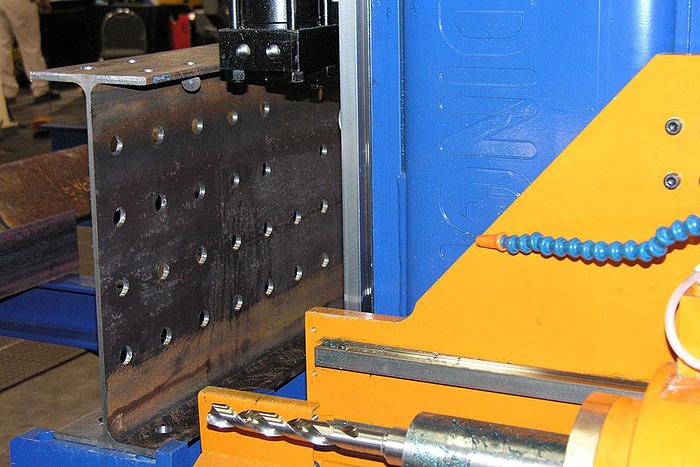

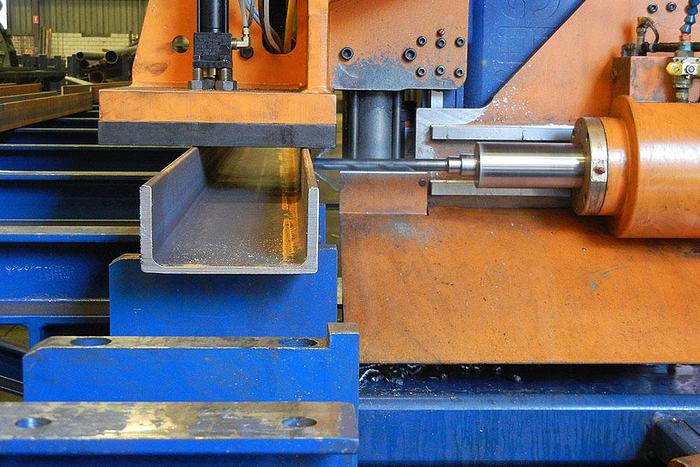

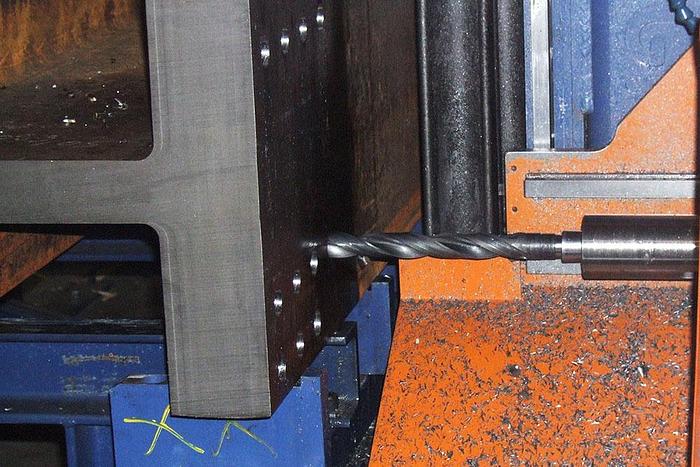

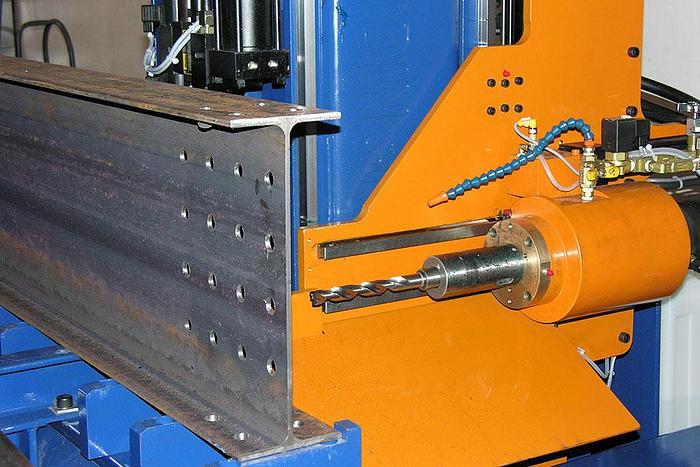

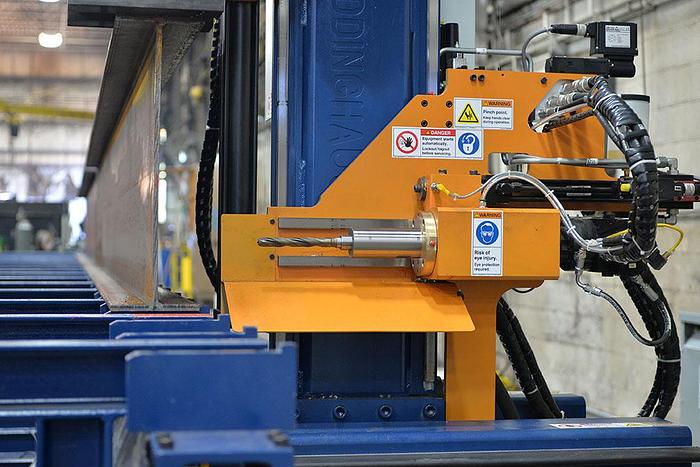

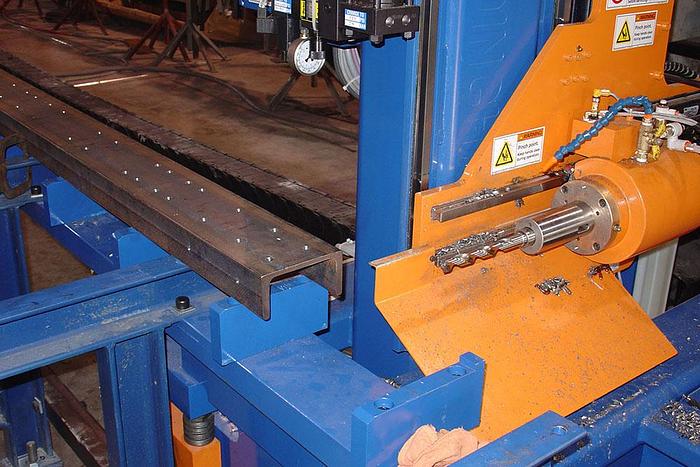

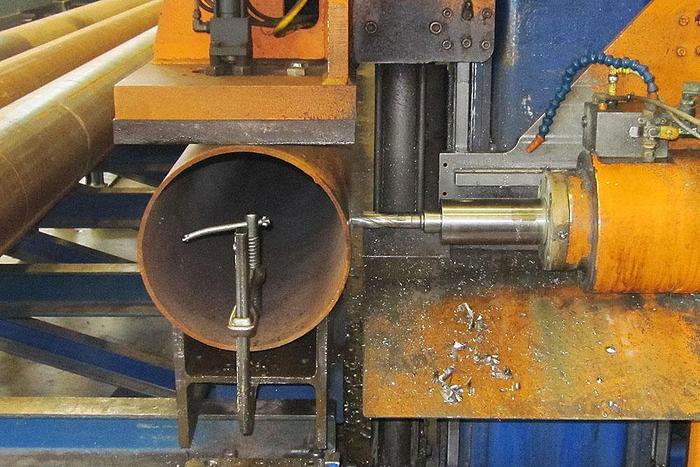

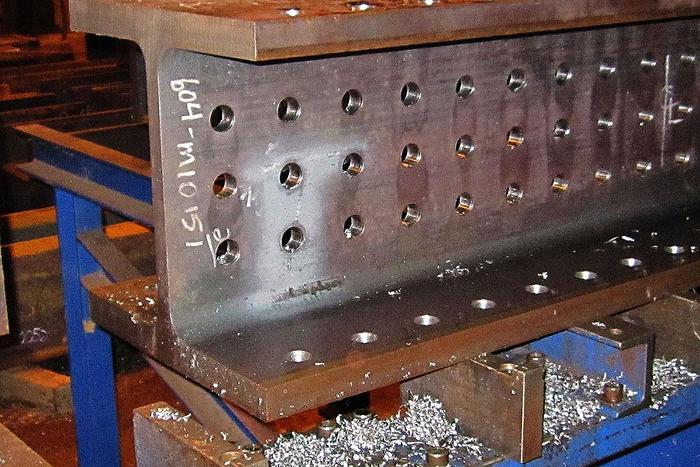

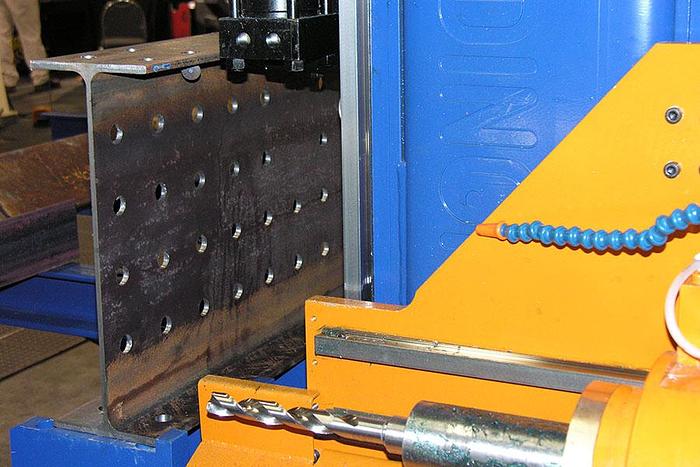

The Ocean Avenger FORTY is the 3rd iteration of this popular machine and it is now even faster and simpler to use. The Avenger FORTY will handle profiles up to 40″ tall (1m), while the Avenger THIRTY will handle profiles up to 30″ tall (760mm). The Avenger THIRTY is normally sold in countries where the maximum profiles size is under 760mm, and this machine packs into a standard shipping container. The Avenger FORTY needs a special Multi-Talent shipping container. Both the Avenger FORTY and the Avenger THIRTY will handle the heaviest jumbo columns up to 730 lbs/ft, essentially the entire catalog of steel profiles found anywhere in the world. Through the tool coolant system keeps drill bits sharper longer. Standard twist drills are capable of providing well in excess of 30,000 holes per drill with resharpening, and this significantly reduces consumable costs. The Drill spindle has capable of drilling holes up to 1-9/16” diameter and through any thickness up to 10″. The Ocean Avenger CNC beam drill line is capable of handling pre-coped parts allowing the machine to be placed anywhere in the production process. The Ocean Avenger utilizes an exceptionally accurate and durable laser system to determine the Zero X-reference. The Y direction is measured by a CNC encoder and the Avenger includes web sensor allowing the machine to detect the REAL web center line, allowing for beams that are hot rolled out of spec. The Avenger completely eliminates manual layout, and manual drilling / punching. It also lays out all the marks for your welded attachments, completely eliminating the tape measure and its associated errors. Provides exceptional accuracy of hole placement, eliminating costly field modifications. Very space efficient – uses no more space than your current trestles. Simple and easy to operate. No computer experience required. Fully automatic measuring, layout and drilling cycle. Fastest return on investment of all Ocean products. Immediate payback on a low investment through attractive financing options.

Specifications

ManufacturerPeddinghaus Corporation, USA
ConditionNew
Maximum Beam SizeAvenger FORTY accept profiles up to 40″ (1000mm) Avenger thirty accepts profiles up to 30″ (760mm). Max beam profile length 60ft (18.3m). Max profile weight 730 lbs/ft (1088kg/m)
Minimum Drill Diameter1/4″ (6.5mm)
Maximum Drill Diameter1-9/16″ (40mm)
Maximum Material Thickness.Up to 10″ (250mm)
Max Speed X Axis120 ft per minute
Max Speed Y Axis120 ft per minute
Spindle Motor Power13 3/4 hp
Drilling Speeds0-545 rpm (continuously variable)
Drilling Feed Rate2” – 10” per min (50-254mm) infinitely variable
Spindle Stroke13″ (330mm) Max.
Total Power20 HP (14.9 kW)
Power Supply208 to 575V, 3-ph, 60 Hz (50Hz available)
Average Output200 to 400 holes per hour depending on the profile drilled
