Description

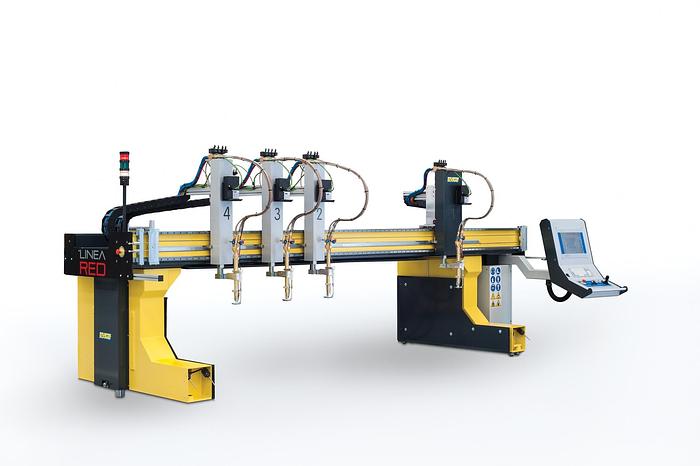

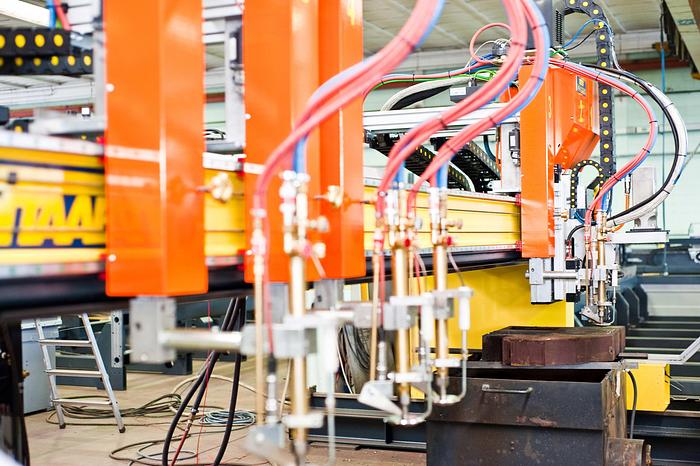

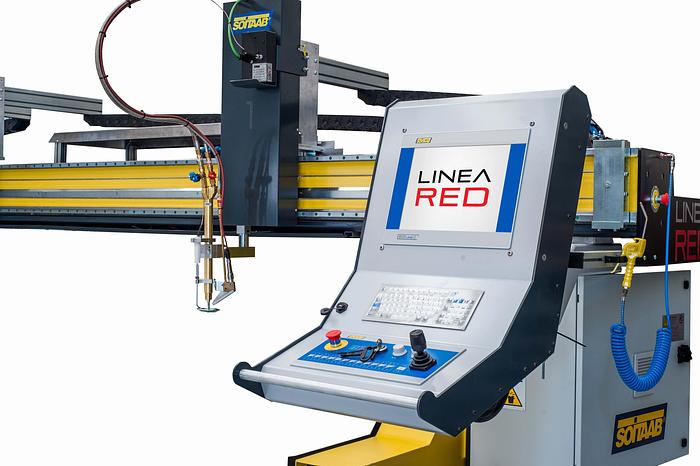

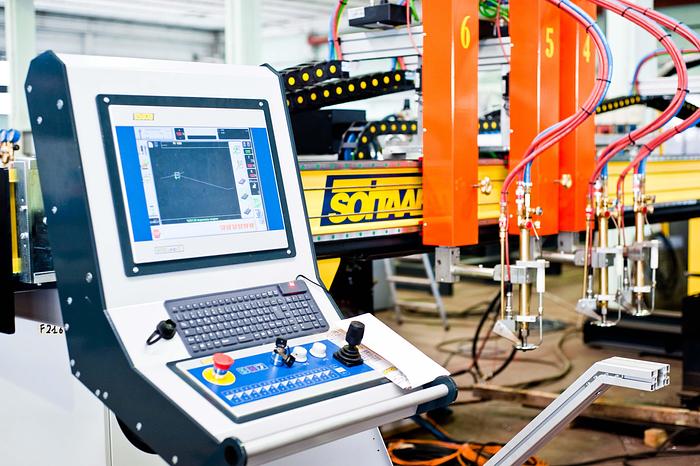

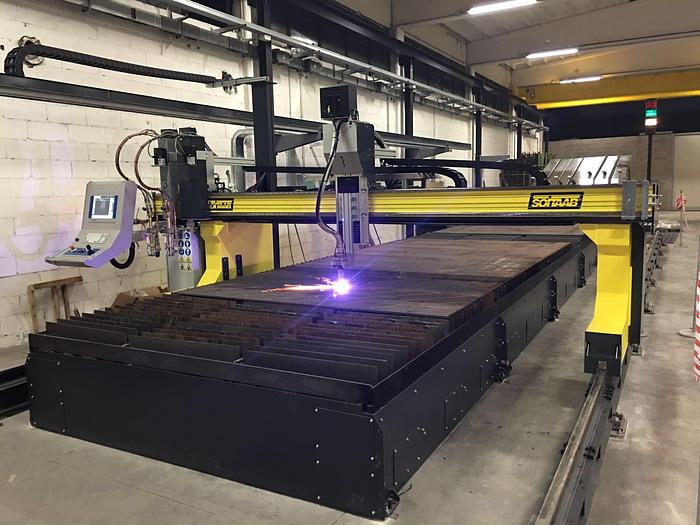

Main Features Can be equipped with up to 6 oxyfuel and 2 plasma stations Total beam width of up to 5.5 m, and depending on the number of work stations, covers a useful cutting width up to4.5m Automatic oxyfuel gas distribution via 3 fully proportional valves controlled by CNC Optional high-definition plasma cutting with automatic gas control make LineaTech RED ideal for cutting complicated shapes, holes of small diameters, slots, and ne details The CNC II can be enhanced with a database for plasma cutting parameters Library of 30 shapes with fixed cutting parameters expandable to 78 shapes LCD control panel with 15 in TFT color touch screen
Specifications

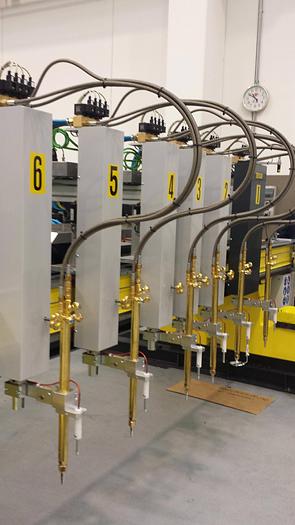

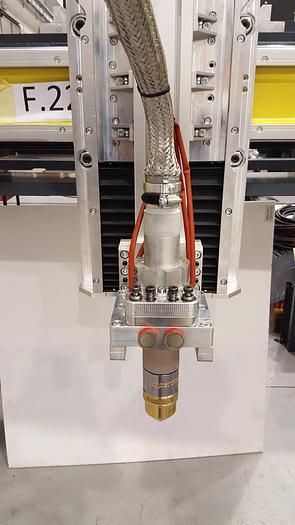

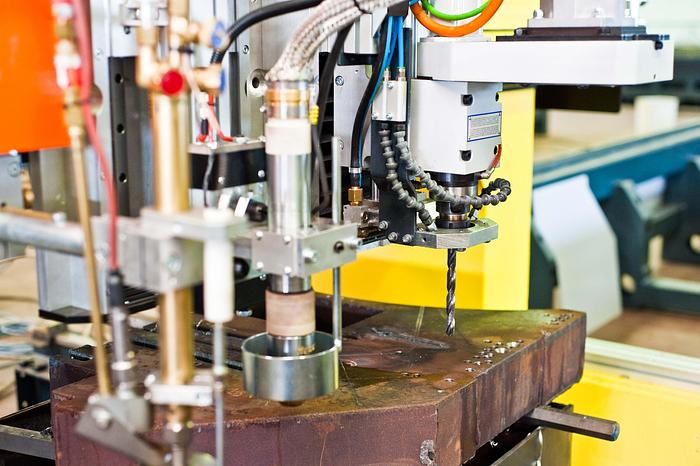

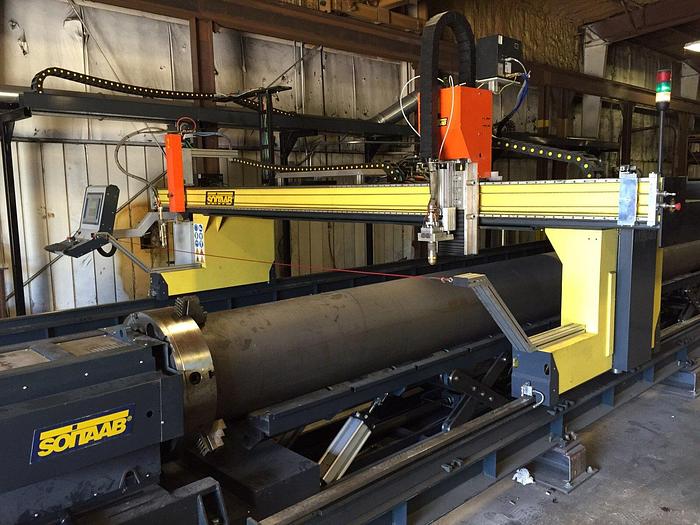

| Manufacturer | Soitaab |
| Condition | New |
| Rail span (min-max) | 9.8 ft. up to 18 ft. |
| Machine length | 6.5 ft. (2.0 m) |
| Machine use length with 4 m rails | 6.5 ft. (2.0 m) |
| Longitudinal rails beam support | HEB - STD 4.75 in. (120 mm) |
| Transversal beam construction | Double |
| Transversal guides | Roller-bearing guides |
| Rack | Vertical teeth |
| Longitudinal drive motor | Dual side drives |
| Displacement speed | 787 ipm (20 m/min) |
| Quality standard | ISO 9013 | e EN DIN 28 206ß |
| Max number of Master carriage | 2 |
| Max number of Slave carriage (plasma) | 1 |
| Max number of Slave carriage (oxy) | 6 |
| Double Master | 2 plasma (or 1 plasma + 1 oxy) |
| Gas distribution (oxy) | Automatic |
| Maximum cutting thickness (oxy) | 10 in. (250 mm) |
| Gas for oxy flame | Oxygen, propane, methane, acetylene |
| Max plasma power | Up to 400 Amps |
| Bevel plasma | YES |
| Bevel oxy | MR + -90° |
| Drilling unit type | ISO 30 for pre-hole |
| Changing tools type | Manual or Pneumatic |
| Tubocut type | Manual lifting |
| Pipe diameter | 3 in. - 20 in. (76mm-500mm) |
| Absolute coordinate | Optional |
| CNC type | SOITAAB II |
| Parametric Shape Library | Standard, up to 30 (optional from 31 to 78) |
| Data base (oxy + plasma) | Optional |
