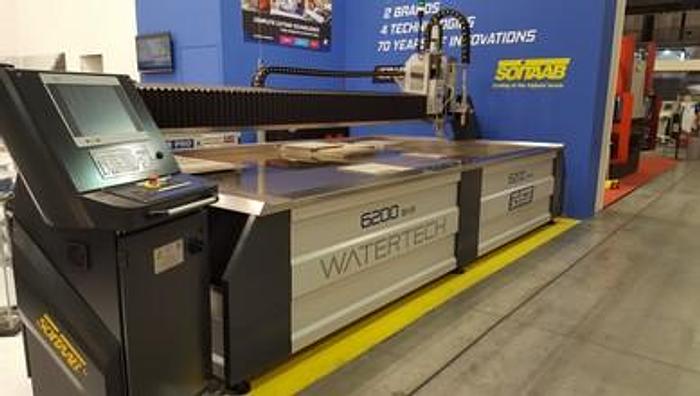

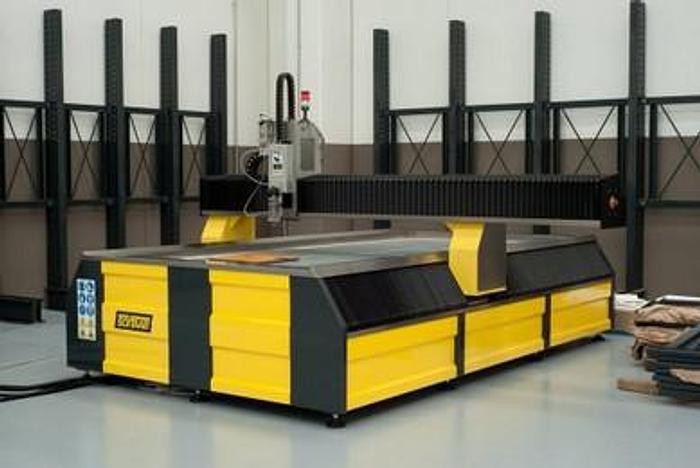

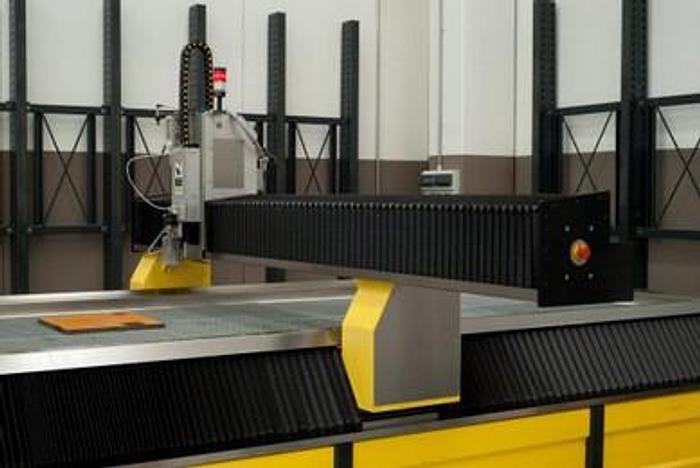

WaterTech RED
WaterTech RED
orCall 804.598.1780
Description
Main Features Dual drive brushless motors and gantry control Rack and pinion drive system Linear guides on the longitudinal axis 2 linear guides on transverse beam Self lubrication system for all guides Bellows protection on all axis Stainless steel (optional) water and abrasive tank Pressurized two-stage abrasive metering system Water table tank with itegrated manual water level controls Ready for future installation of an abrasive removal system Cutting tables embedded in the CNC allow selection of quality levels from 1 to 5
Specifications
| Manufacturer | Soitaab |
| Condition | New |
| Working area | 5ft. x 10ft. up to 10ft. x 20ft. |
| Motors (x, y, z) | Brushless |
| Driver (x, y, z) | Digital |
| Positioning speed | 1575 ipm (40 m/min) |
| Positioning accuracy | + - .004 in (+ - 0,1 mm/m) |
| Repeatability | +- .002 in (+ - 0,05 mm/m) |
| CNC | Soitaab CNC |
| Monitor | 15 in LCD touch screen |
| Data communication | USB - Ethernet - LAN |
| Cutting technologies | Water-jet with abrasive |
| Carriage stroke (z) | 7.5 in (option 11.8 in) 200 mm (option 300 mm) |
