MBX Plus 6 Autoindex 1250/30 -1300
MBX Plus 6 Autoindex 1250/30 -1300
orCall 804.598.1780
Description
Euromac’s MBX plus Autoindex 6

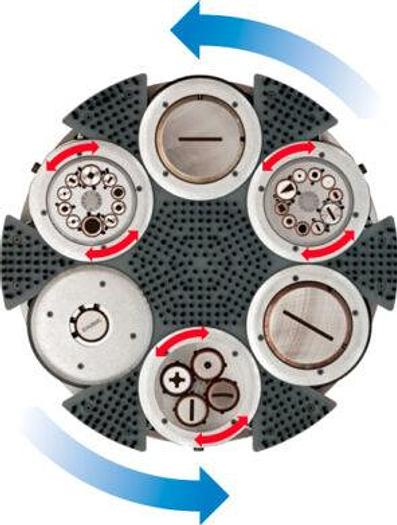

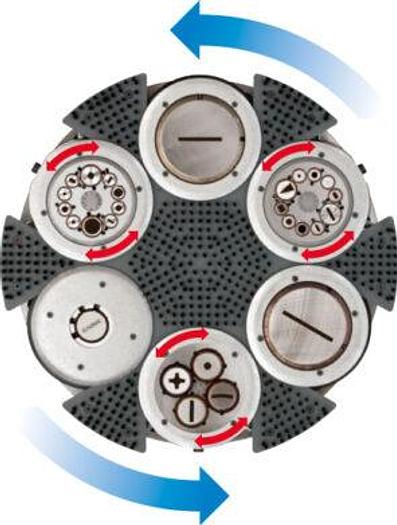

6 station turret (up to 60 tools) Hydraulic Punch 50″ throat.
33 US Tons
Compact floor space with a working area of 51″ x 50″ (1300 x 1250 mm) without repositioning.
Punching speed:
– up to 625 strokes per minute for nibbling 1 mm pitch
– up to 300 strokes per minute for punching 20 mm pitch
Specifications
| Manufacturer | Euromac |
| Model | MBX Plus 6 Autoindex 1250/30 -1300 |
| Condition | New |
| MAX. PUNCHING FORCE US TON (KN) | 33 (300) |
| Y-axis ” (mm) | 50″ (1250) |
| Y-axis motors | 1 |
| X-axis ” (mm) | 51″ (1300) |
| TURRET | 6 Stations / 3 D Bi-directional Autoindex / 3 D Fixed |
| DIMENSIONS | 12′ x 7′ (3630 x 2230 mm) / 18,150 lbs (8100 kg) |
