MBX Plus 6 Autoindex 1250/30 -2250

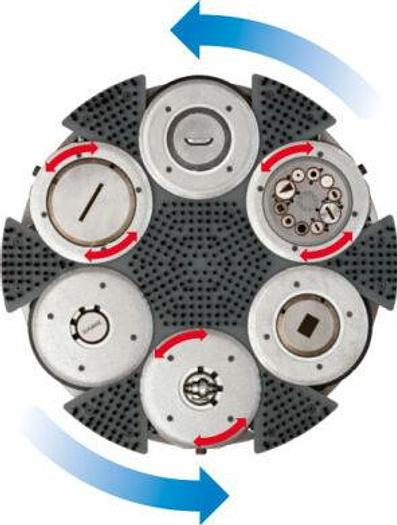

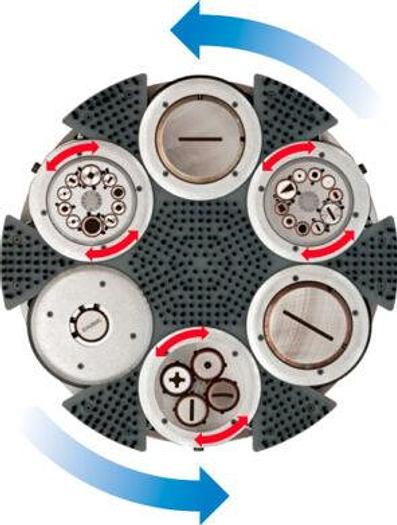

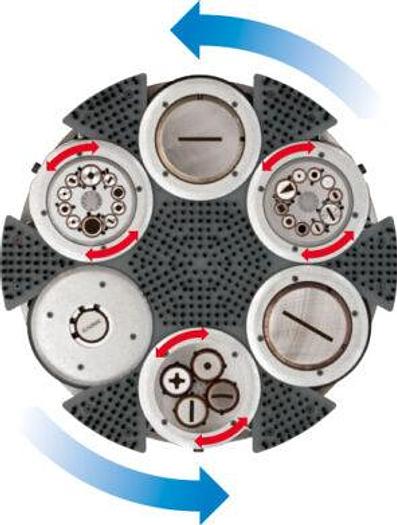

The Euromac MBX Plus 6 Autoindex 1250/30 -2250 is a high-performance CNC sheet metal punching machine, designed for precision and efficiency. Featuring a 6-station turret that accommodates up to 60 tools, this machine provides flexibility in tooling options. The machine boasts a hydraulic punch force of 33 US Tons, enabling robust processing of metal sheets. Its working area spans up to 2250 x 1250 mm (8x4'), allowing for large sheet handling without the need for repositioning. Equipped with a maximum punching speed of 625 strokes per minute for nibbling with a 1 mm pitch, and up to 300 strokes per minute for more substantial 20 mm pitch tasks, it ensures quick and accurate punching operations. The machine is designed with a sizeable 50″ (1250 mm) Y-axis and a 90″ (2250 mm) X-axis, driven by a single Y-axis motor, providing a comprehensive operational range. The MBX Plus 6 Autoindex is constructed with dimensions of 4850 x 3630 mm and weighs 18,550 lbs (8400 kg), making it a robust solution for industrial sheet metal processing. Its design emphasizes precision and durability, making it suitable for a variety of applications within the manufacturing sector.
