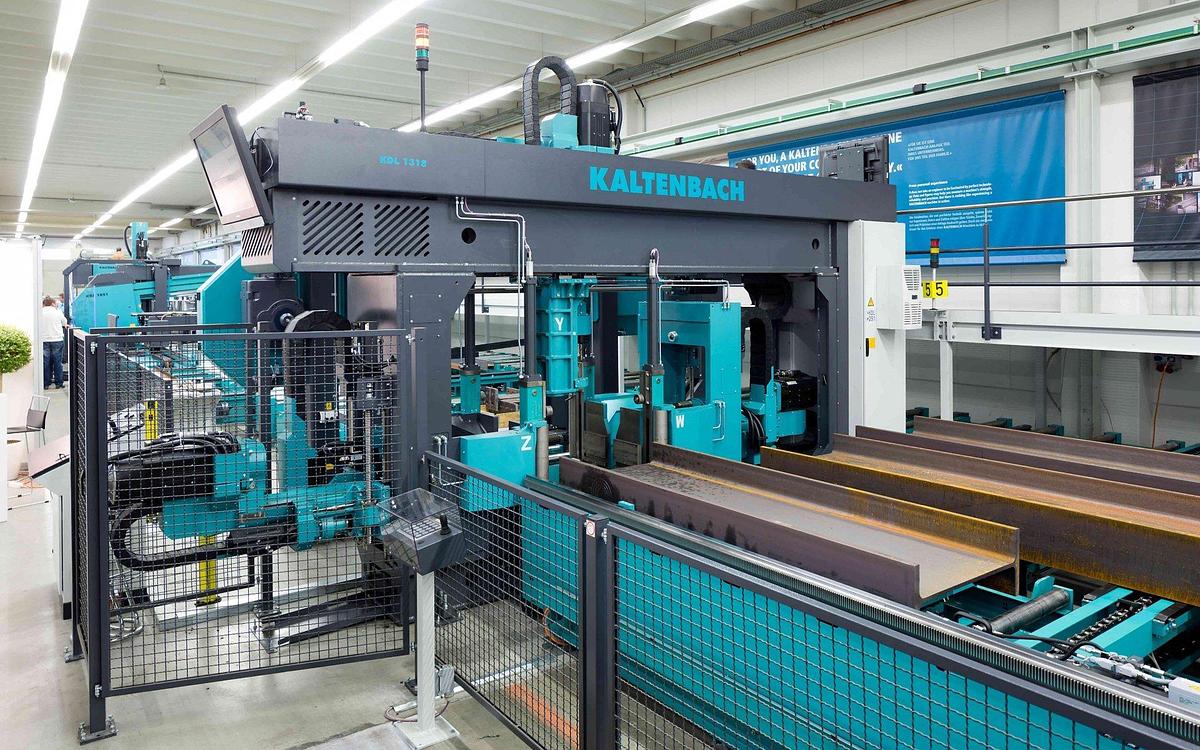

KDL 2118

Drill line for medium- and heavy-duty steel fabrication and service centers
Workspace [mm]: 2,100 x 700 and number of tools: 18

Benefits at a glance

• Robust design for a longer machine lifetime
• Efficient drilling, milling, marking, tapping and countersinking
• Powerful drive for highest processing performance
• Powerful clamping system for a longer tool usage
• Intelligent material measurement for greater process reliability
• Servomotors and ball screw for high-precision
• Tool changer for 6 tools per axis for less setup times

Features

Robust machine portal construction

• High rigidity ensures low vibrations for low operational costs
• Very long machine lifetime even under challenging conditions

Drill carriages with drill spindles

• Robust design for low vibrations and less tool wear
• Fast and precise positioning via ball screw drive and servomoters

Clamping system

• Horizontal and vertical clamping system for less vibration
• High clamping power for best fixation and precision
• Less tool wear and thus operational costs

Drilling spindles

• Provided Technologies are drilling, milling, tapping, countersinking and marking
• Powerful and fast processing
• Outstanding drilling performance

Automatic tool changer

• Fast tool changer for 12 tools per axis
• Low setup time for higher machine utilization
• Automatic tool length measurement

Chip container

• Integrated chip container in machine base
• Easy chip handling
• Extractable on both side for full flexibility

Chip conveyor

• Automated chip handling
• Higher comfort for operator

Hard stamping unit

• Fast marking of numbers and letters
• Mark up to 21 letters without material movement in parallel
• Marking is also visible after shotblasting and painting

Contour marking

• Fast and flexible marking for characters and geometries
• Marking on up to 4 material sides

Milling

• Powerful milling features
• Easy operation due to milling macros

Web support

• Moveable unit to support the web
• Intensive web processing can be done even on bendabile profiles

Complementary

KBS 1010

• Fast and accurate saw for big profiles
• Cutting mitering angle up to +45°/-60°
• Vertical and horizontal clamping device for low vibrations
• Automatic feed control and slippage detection for highest comfort

KBS 1051

• Fast and accurate saw for big profiles
• Cutting mitering angle up to +50°/-60°
• Powerful drive for carbide saw bands to reduce cutting times up to 50%
• Highest automation potencial for less manpower requirements
• Intelligent material measurement for highest precision and process reliability
• Vertical and horizontal clamping device for low vibrations
• Automatic feed control and slippage detection for highest comfort

Measuring carriage

• Precise positioning of material
• Adjustments for the processing of layers possible

Push-off device

• Automated outsorting of short parts
• Handling of parts with straight cuts
• Up to 2 outfeed positions

Short piece gripper

• Automated outsorting of short parts
• Handling of parts with mitered cuts
• Up to 3 outfeed positions

Autosorter

• Automated outsorting of short parts
• Handling of parts with mitered cuts
• Up to 6 outfeed positions
