KBP 701 (KBS 761)

KBP 701 (KBS 761)

or
Call 804.598.1780

Description

Mitering band saw for light- and heavy-duty steel fabrication and service centers
Workspace 90° [mm]: 750 x 500

Benefits at a glance

  • Highest cutting performance
  • Long machinery life
  • Robust construction
  • Highest automation possibilities
  • Precise setting of cutting angle
  • Significant reduction of cutting time by means of Auto Feed Control

Features

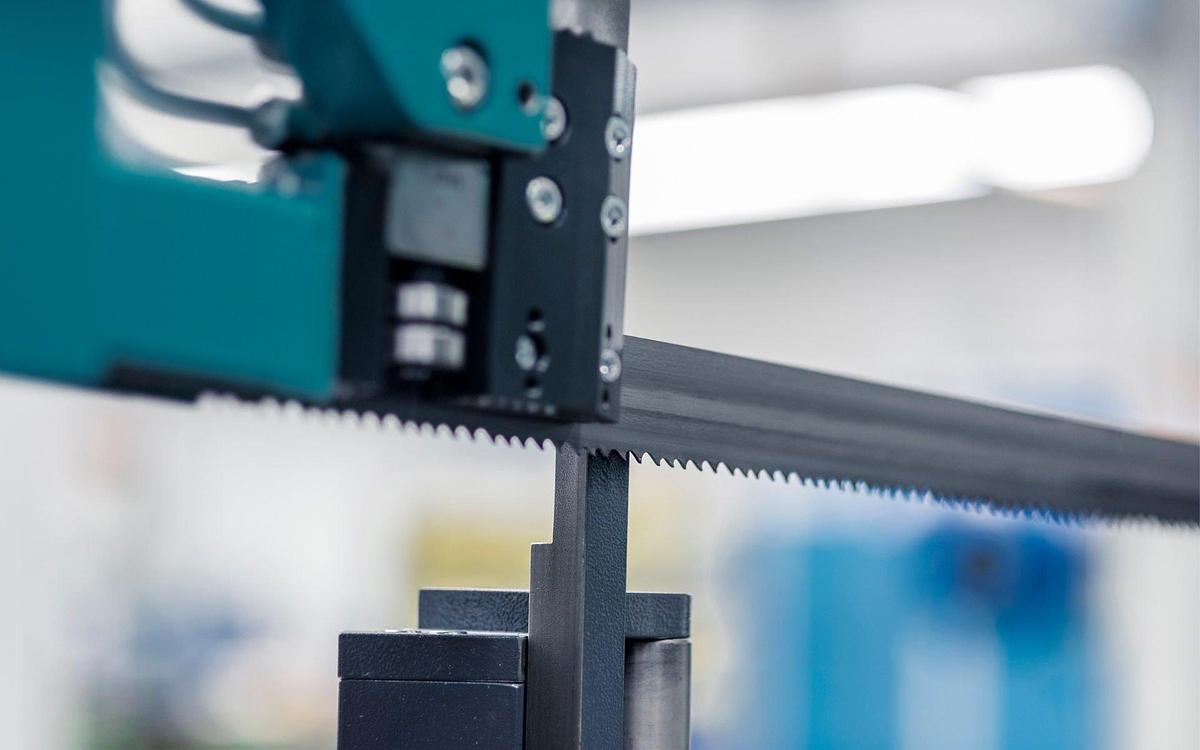

  • Outstanding cutting performance Auto Feed Control (AFC)
    • Precise positioning
    • Automatic tilt angle adjustment of the saw band in case of heavy products
    • Significantly reduced cutting times
    • First class end products

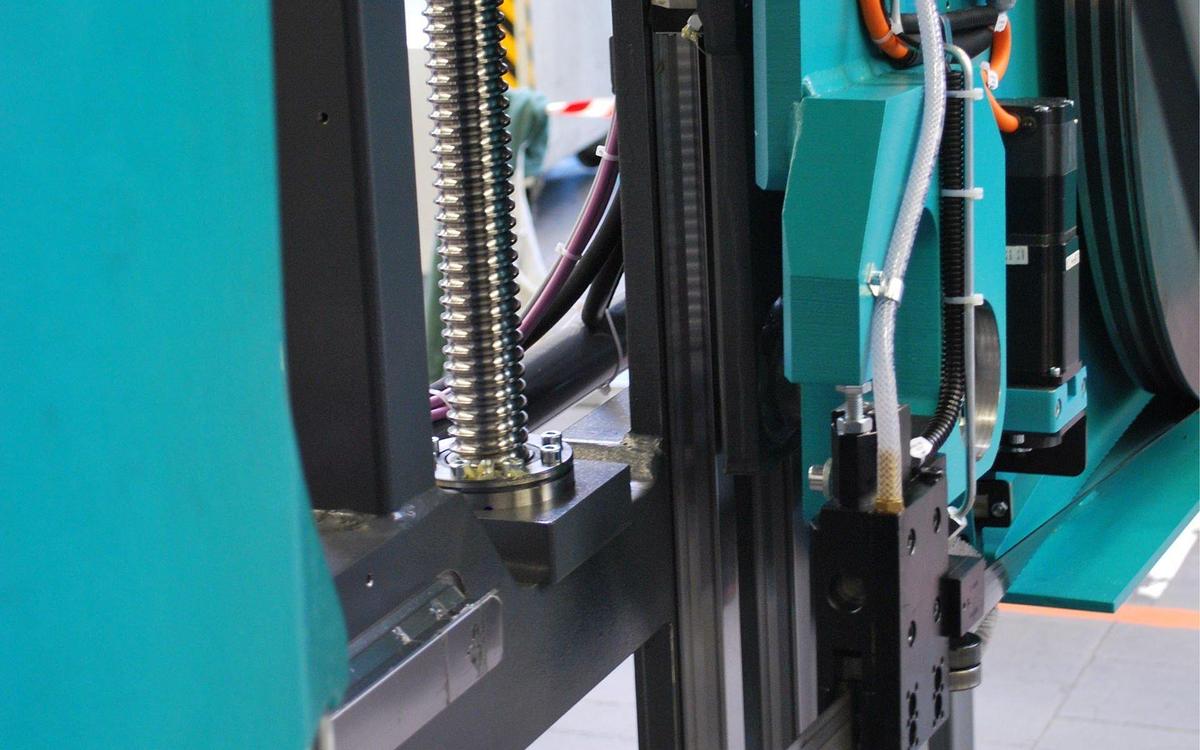

    Optimal Feed
    • Saw feed with ball screw and servomotor
    • Constant and temperature-independent feed
    • Low idle times and higher machine utilization

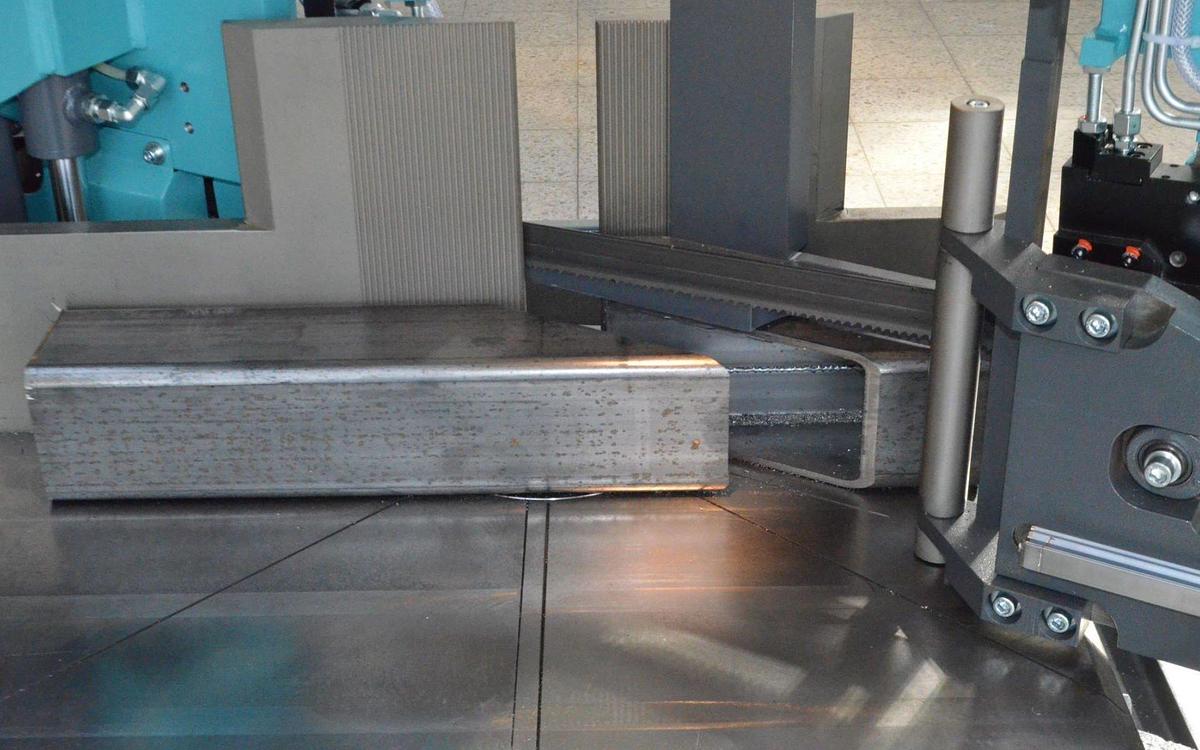

    Precise setting
    • NC-controlled angle setting
    • High quality cuts
    • NC-standard enables highest reliability

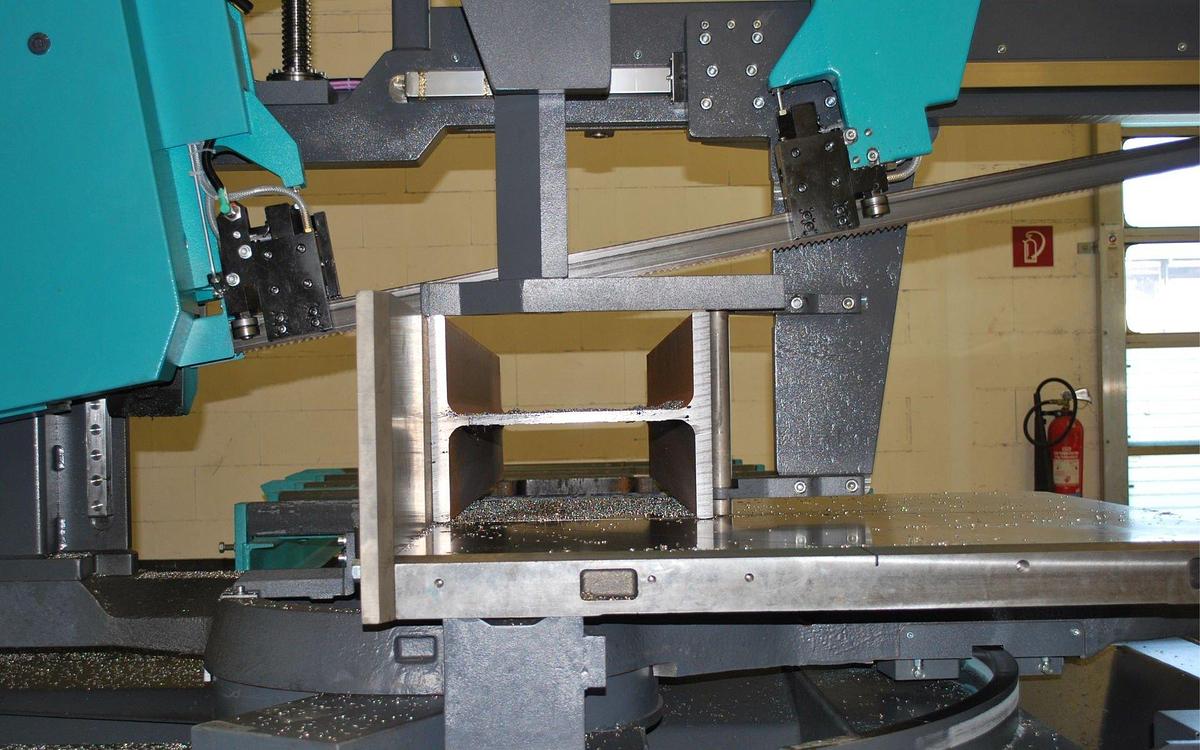

    Powerful and reliable clamping
    • Horizontal and vertical clamping device
    • Low vibrations for long saw band lifetime and low operating costs
    • Cutting of material layers and bundles possible

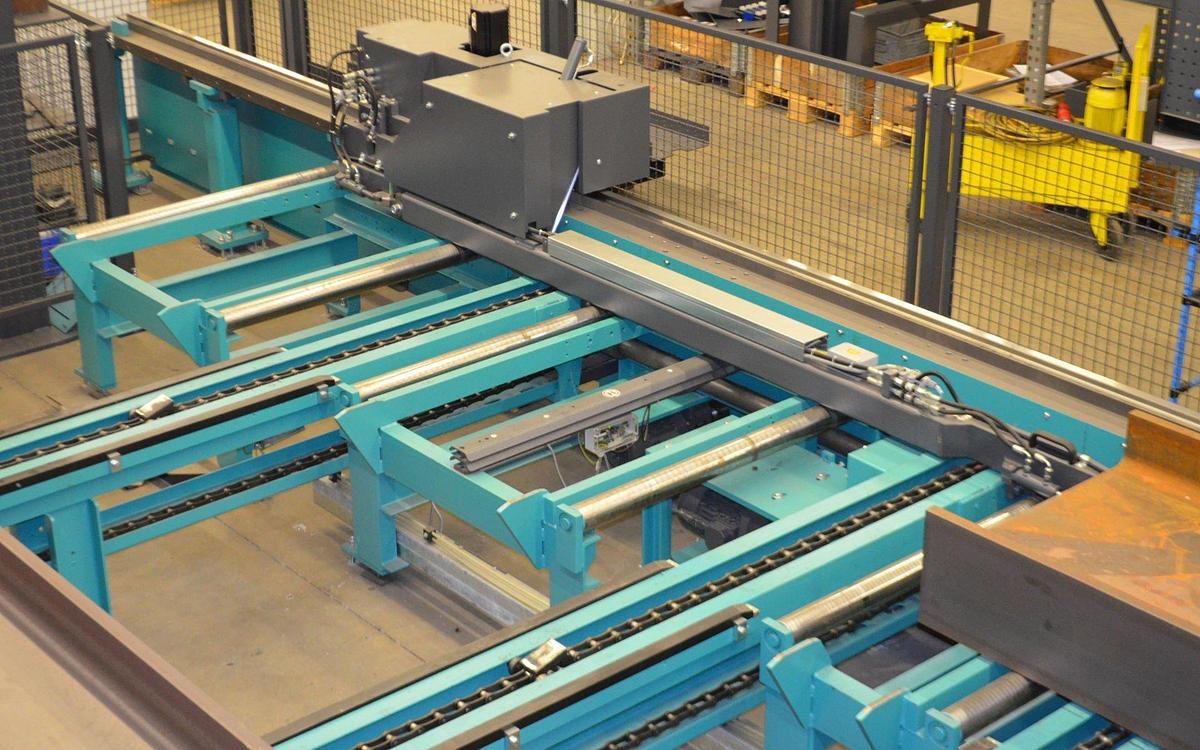

    Optimal process flow
    • Accurate positioning of material at in- and outfeed side
    • Measuring carriages with various types of pushers and grippers
    • Length stop LS 220 and LS 270

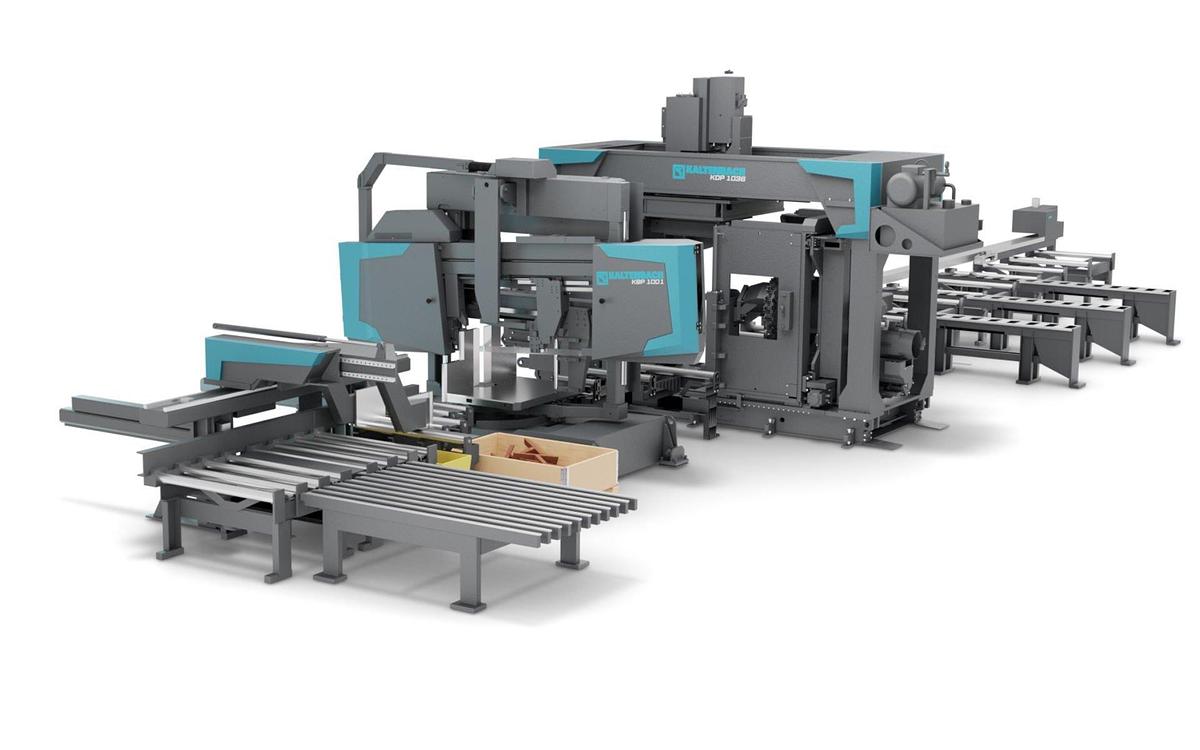

    Full system automation
    • Automated outsorting of short parts
    • SPG - Short piece gripper for outsorting at one side
    • AS - Autosorter AS 1000 for outsorting at both sides

    • Software

  • PROFILINE

    Modern Software Package for KALTENBACH Drilling and Drilling-Sawing Machines



    PROFILINE

    Easy, user friendly machine operation

    • Programming of orders via color touchscreen with large keypads directly on the machine control console

    PROFILINE

    Order manager

    • Create, copy and delete orders
    • Graphic display of individual positions within an order

    PROFILINE

    Profile database

    • Comprehensive profile database
    • Easily expandable
    • Graphic display of workpiece forms

    PROFILINE

    Tool manager

    • Tool Changer setup based upon the tool type and diameter
    • Allocation of the drill diameter to rotational speed settings and feed rates

    PROFILINE

    Production data report

    • Recording of production times of individual pieces or entire orders

    PROFILINE

    Data transfer and data response

    • Data input directly on the machine’s control console
    • Data import in DSTV or DSTV+ format
    • Data export of previously produced parts in DSTV feedback format to any directory

    Downloads


    • Flussdiagramm_Profiline_en (PDF, 0.03 MB)

    • Complementary

  • KDM 615
    • Drilling machine for drilling, tapping, countersinking, marking and milling
    • Powerful motors for high performance applications
    • Processing on up to 3 axis simultainelsly
    • Automatic tool change with up to 5 tools per axis
    • Integrated material measurement system for high presicion
    KDP 736
    • Drilling machine for drilling, tapping, countersinking, marking and milling
    • Additional sub-axis for parallel processing on 500 mm along the material
    • Powerful motors for high performance applications
    • Processing on up to 3 axis simultainelsly
    • Automatic tool change with up to 5 tools per axis
    • Integrated material measurement system for high presicion
    • Show All

    Specifications

    ManufacturerKALTENBACH
    ConditionNew
