KDP 1036

Drill line for medium- and heavy-duty steel fabrication and service centers
Workspace [mm]: 1,030 x 600 and number of tools: 36

Benefits at a glance

• Robust design for a longer machine lifetime
• Efficient drilling, milling, marking, tapping and countersinking
• Powerful drive for highest processing performance
• Powerful clamping system for a longer tool usage
• Intelligent material measurement for great process reliability
• Servomotors and ball screw for high-precision
• Lager tool changer for 12 tools per axis for less setup times
• Additional sub-axis of 500mm for parallel processing
• Machining while sawing for highest parallization

Features

Robust machine portal construction

• High rigidity ensures low vibrations for low operational costs
• Very long machine lifetime even under challenging conditions

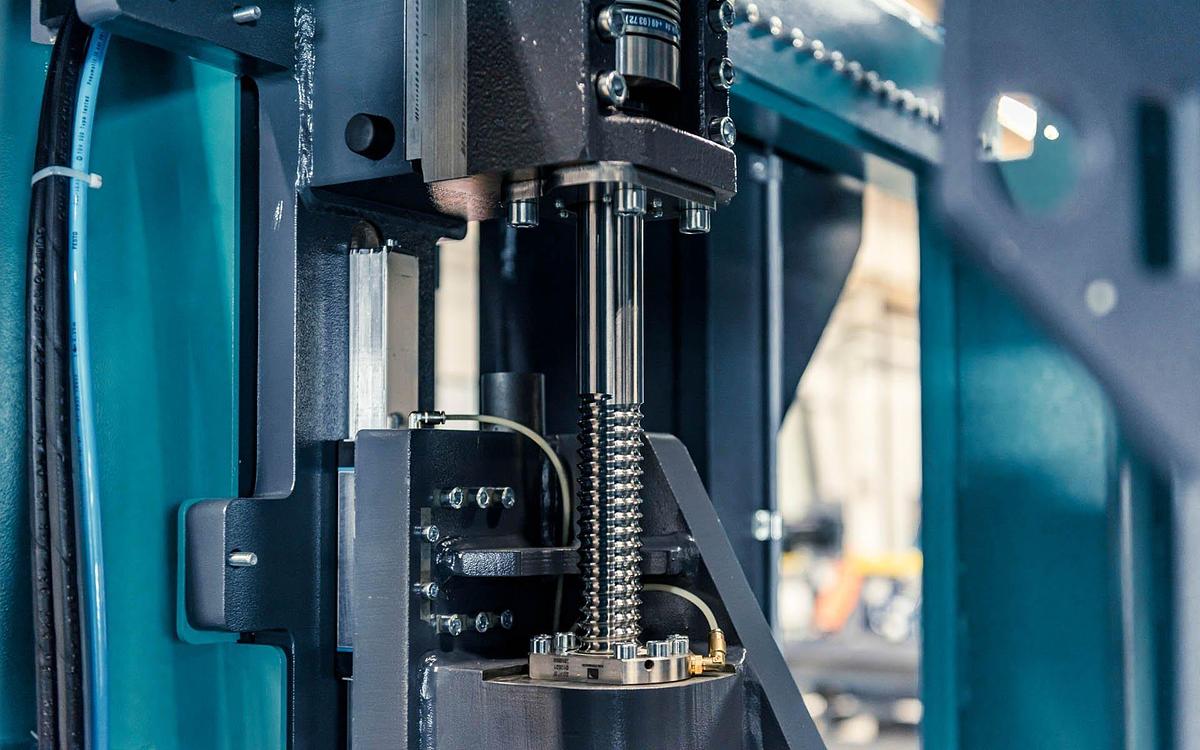

Drill carriages with drill spindles

• Robust design for low vibrations and less tool wear
• Fast and precise positioning via ball screw drive and servomoters

Clamping system

• Horizontal and vertical clamping system for less vibration
• High clamping power for best fixation and precision
• Less tool wear and thus operational costs

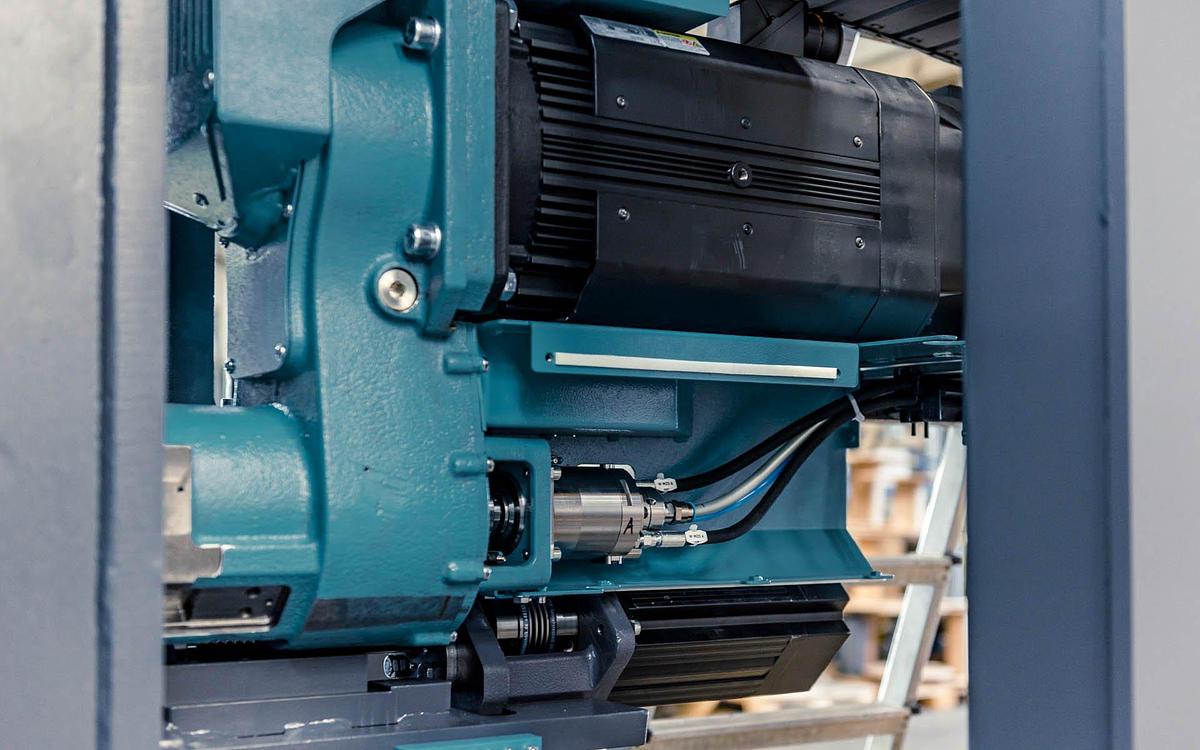

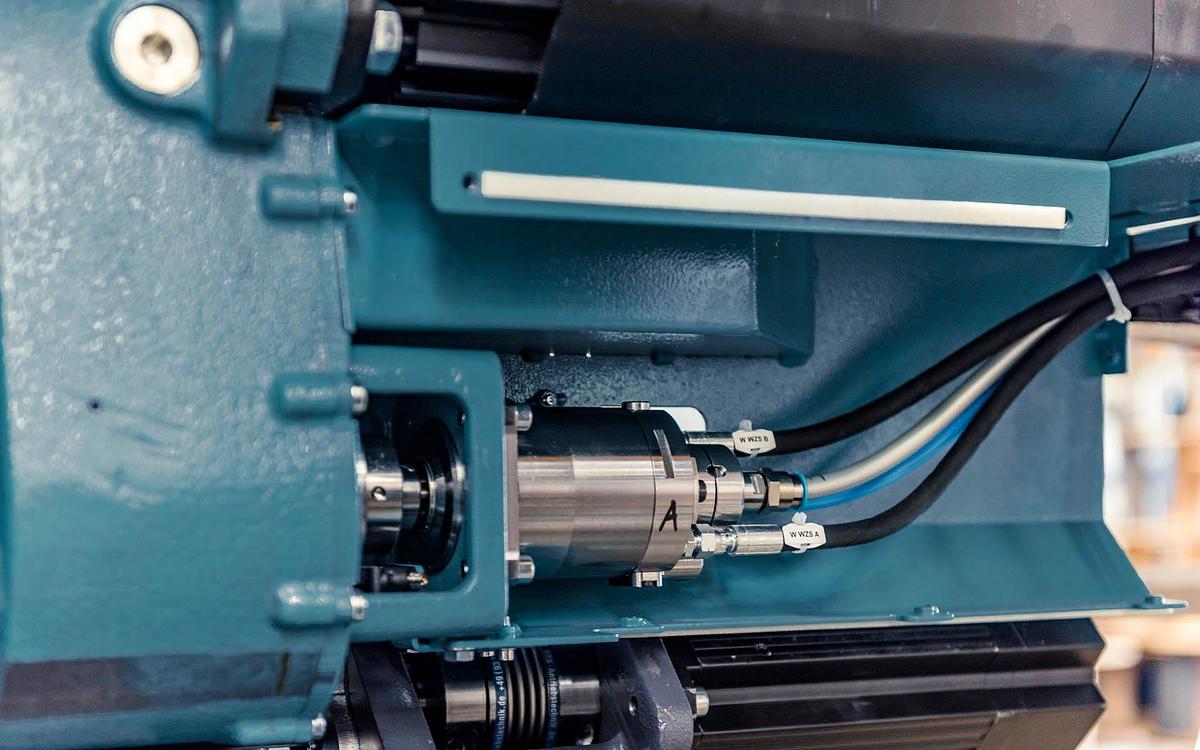

Drilling spindles

• Provided Technologies are drilling, milling, tapping, countersinking and marking
• Powerful and fast processing
• Outstanding drilling performance

Automatic tool changer

• Fast tool changer for 12 tools per axis
• Low setup time for higher machine utilization
• Automatic tool length measurement

Chip container

• Integrated chip container in machine base
• Easy chip handling
• Extractable on both side for full flexibility

Chip conveyor

• Automated chip handling
• Higher comfort for operator

Hard stamping unit

• Fast marking of numbers and letters
• Mark up to 21 letters without material movement in parallel
• Marking is also visible after shotblasting and painting

Contour marking

• Fast and flexible marking for characters and geometries
• Marking on up to 4 material sides

Milling

• Powerful milling features
• Easy operation due to milling macros

Web support

• Moveable unit to support the web
• Intensive web processing can be done even on bendabile profiles

Complementary

Connection to steel roller conveyor

• Cross transport by means of lift-and-carry system (as an alternative to drag chains)

Low-noise material cross transport

• Due to additional polyamide-coated rollers into the roller conveyor the noise is significantly reduced
• Fully-automatic control
• Contributes to enhanced occupational safety and the protection of personnel and the environment



Space saving measuring system on the feed side

• M 152 GG sliding measuring carriage with two grippers

Cross transport with lifting pins

• Cross transport with lifting pins

Fast material cross transport

• Material stock in heavy-duty steel construction
• Sliding rails of synthetic material (polyamide) for low-noise material cross transport
• Drag chains with transport claws
• Drive system with continuously-variable frequency-controlled gear motor



T 14 transport system for steel construction and steel service centers

• T 14 modular expandable conveyor roller system

Universal measuring system on the feed side

• M 151 G sliding measuring carriage with gripper
