PUMA 2HI + SHEAR MASTER

Manual Beam Punching Line for Solar Trackers

PUMA 2HI is a manual punching solution for steel beams used in solar pile foundations and tracker structures. With up to 440 tons of force and up to 8 holes per stroke, it offers high productivity for solar mounting manufacturers.

Its double-head tandem design allows simultaneous punching on both flanges, avoiding beam rotation.

When combined with the optional Shear Master unit, it becomes a complete punching and shearing line for the solar and structural steel industries.

Key Features of the PUMA 2HI

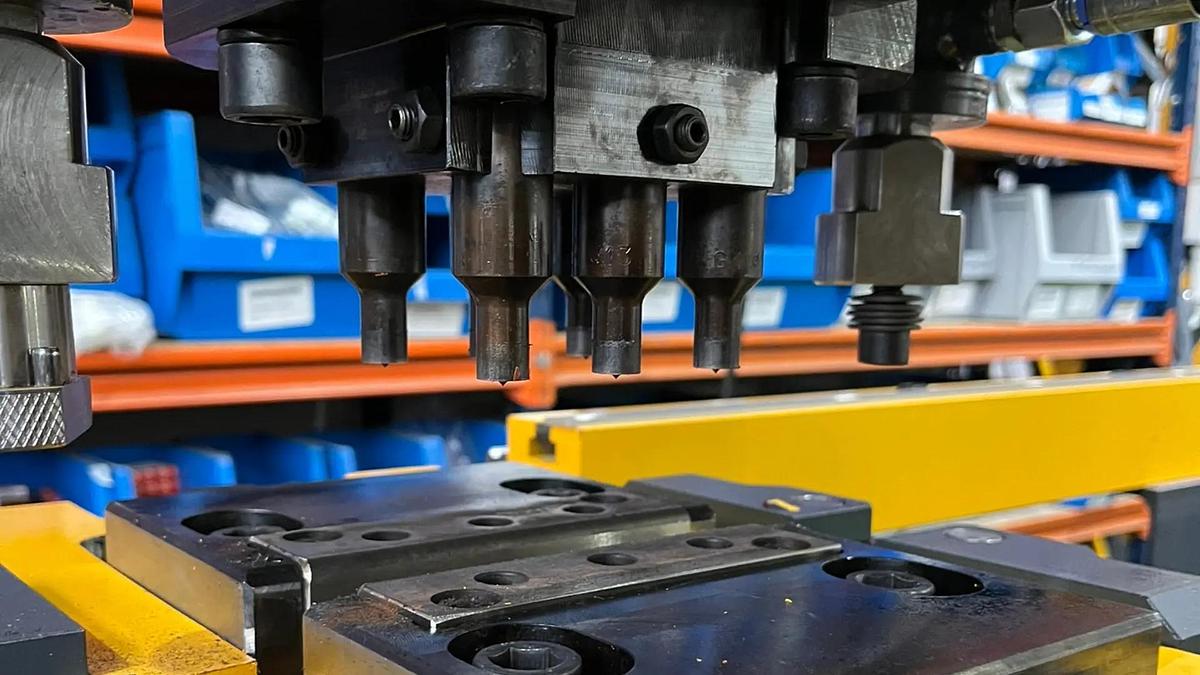

PUNCHING UNIT

• Up to 2, 4, 6 or 8 holes in a single stroke.
• Simultaneous punching on both beam flanges.
• Compatible with round and oblong punches.
• Punching force from 165 metric tons up to 440 tons.
• Some models can also operate as a press.

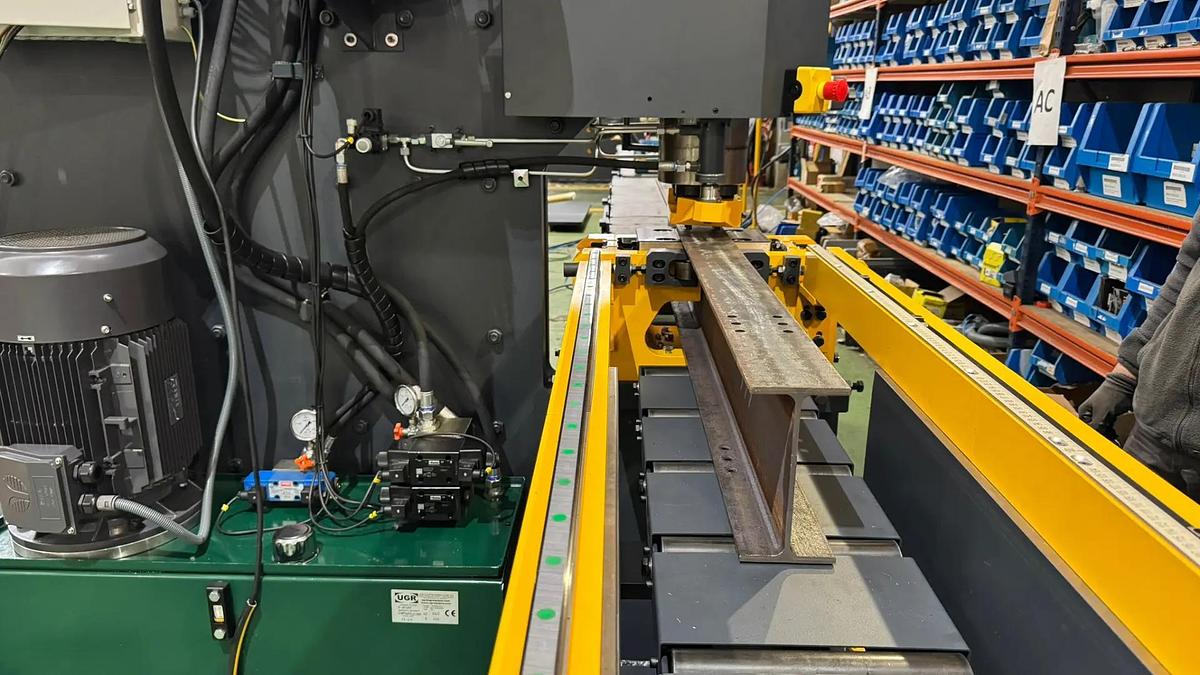

MATERIAL HANDLING AND ALINGMENT UNIT

• Idle rollers for beams up to 9 meters in length.
• Alignment rollers to assist with manual feeding.
• Available with fixed or adjustable height.
• Dual roller system for precise web alignment.
• Ensures symmetrical and accurate hole positioning.

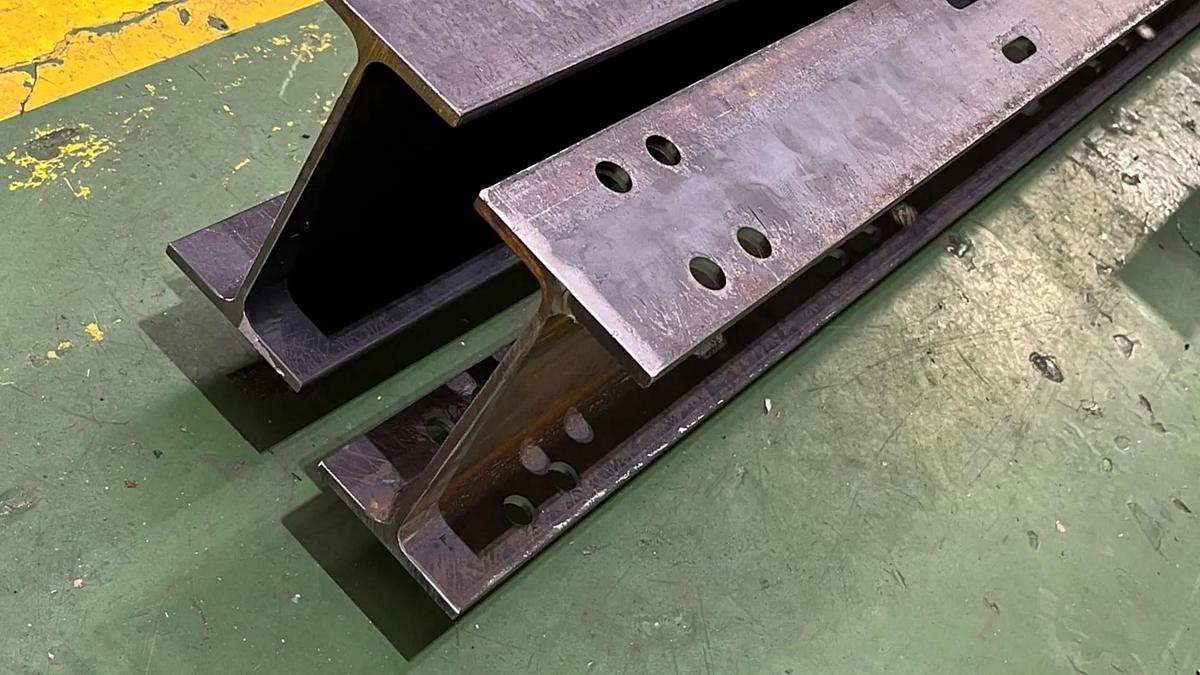

FLEXIBILITY AND SCALABILITY

• Modular system adaptable to custom hole patterns.
• Can be integrated with the Shear Master cutting module.
• Ideal for solar structures and structural steel projects.

Key Features of the SHEAR MASTER

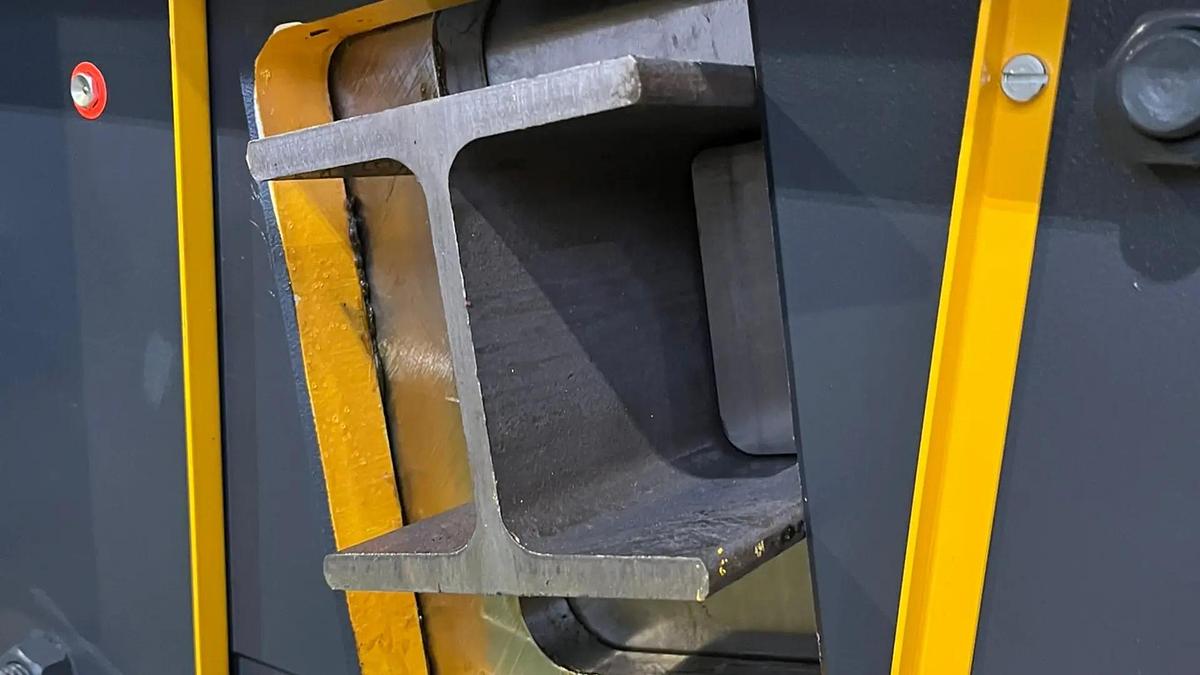

SHEARING UNIT

• 365-ton shearing system.
• Precise, deformation-free cuts.
• No material waste.

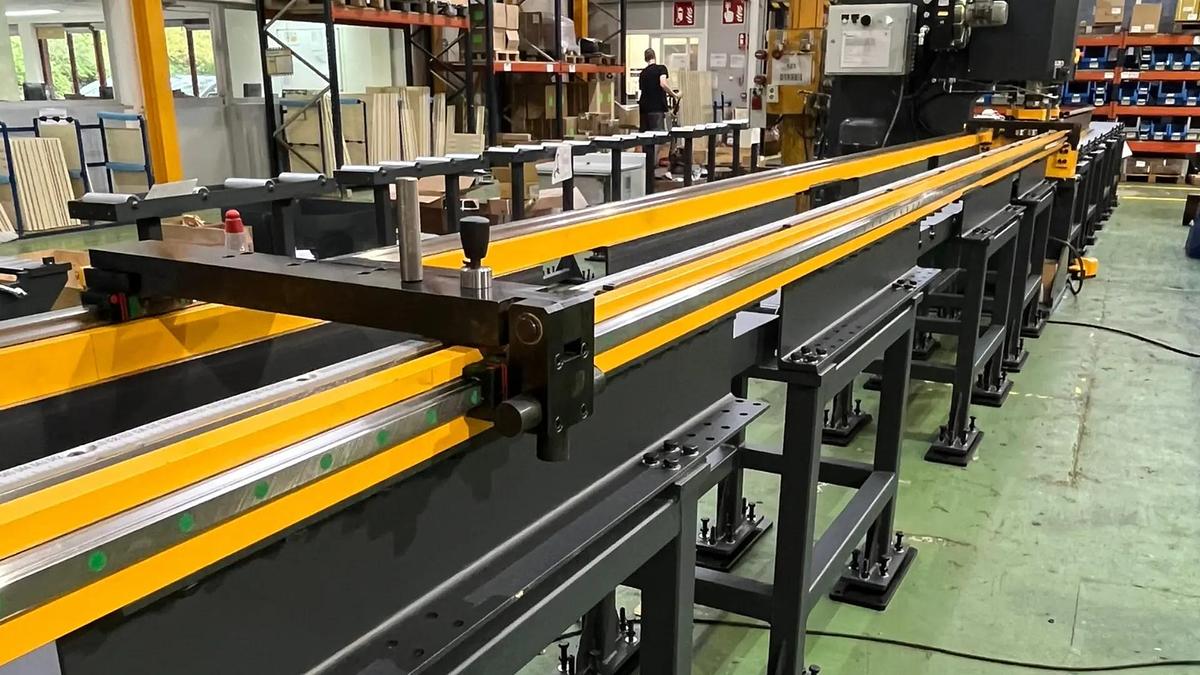

FAST CYCLE TIME & SMAT FEED

• 4 sec cut + 7 sec positioning.
• Infeed/outfeed roller tables 2 meter.
• Electric or mechanical stop for auto-shearing.

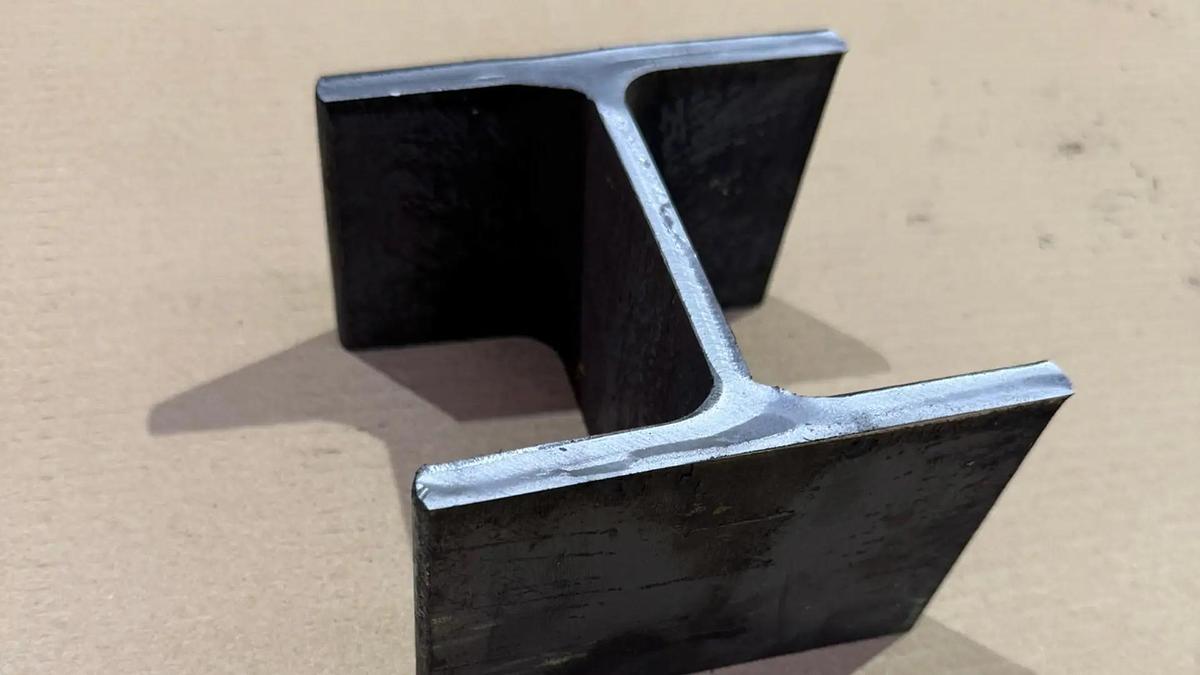

EXTENDED SPECIFICATIONS

• Heavy-duty structure.
• Works with HEA 160 to HEB 180 / W6x7 to W8x40 profiles.
• Perfect match for PUMA 2HI punching lines.

Applications and Industry Sectors

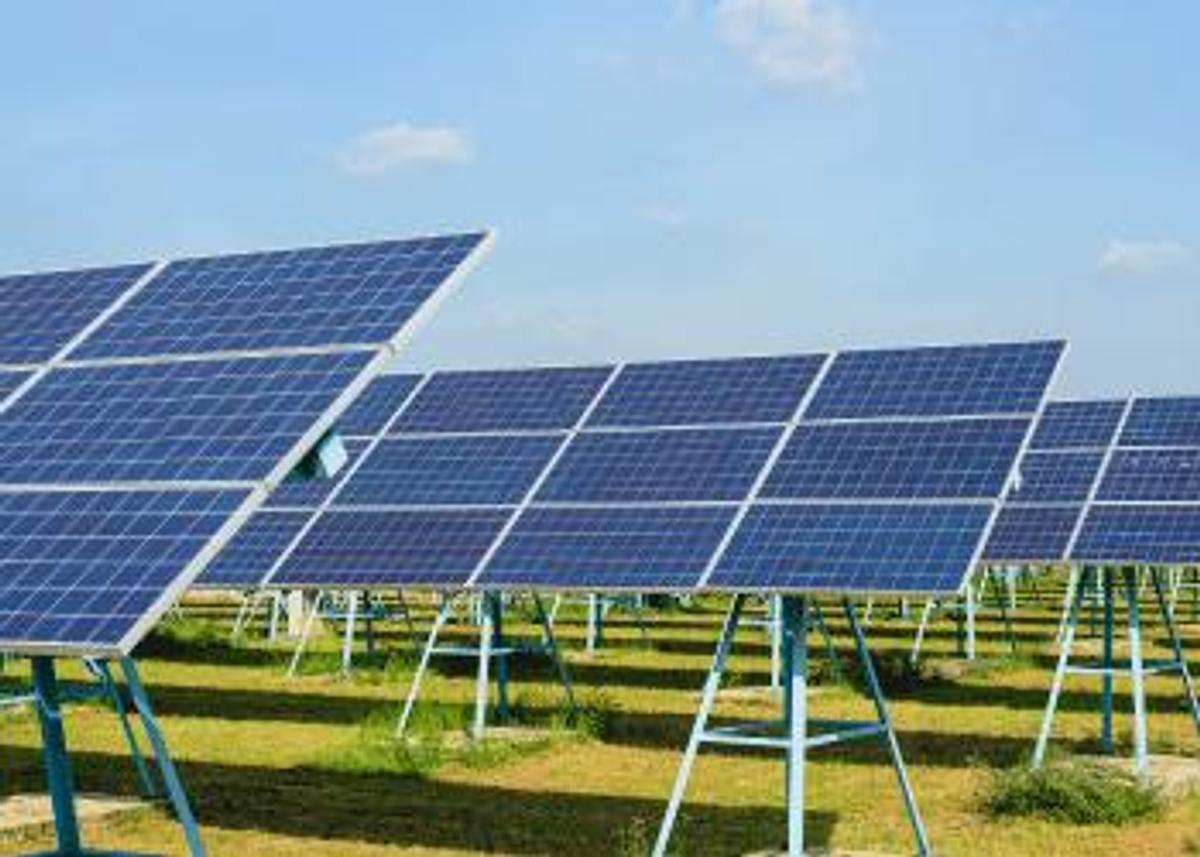

Solar StructuresProcessinng of beams for solar trackers
