PCR42

PCR42

Description

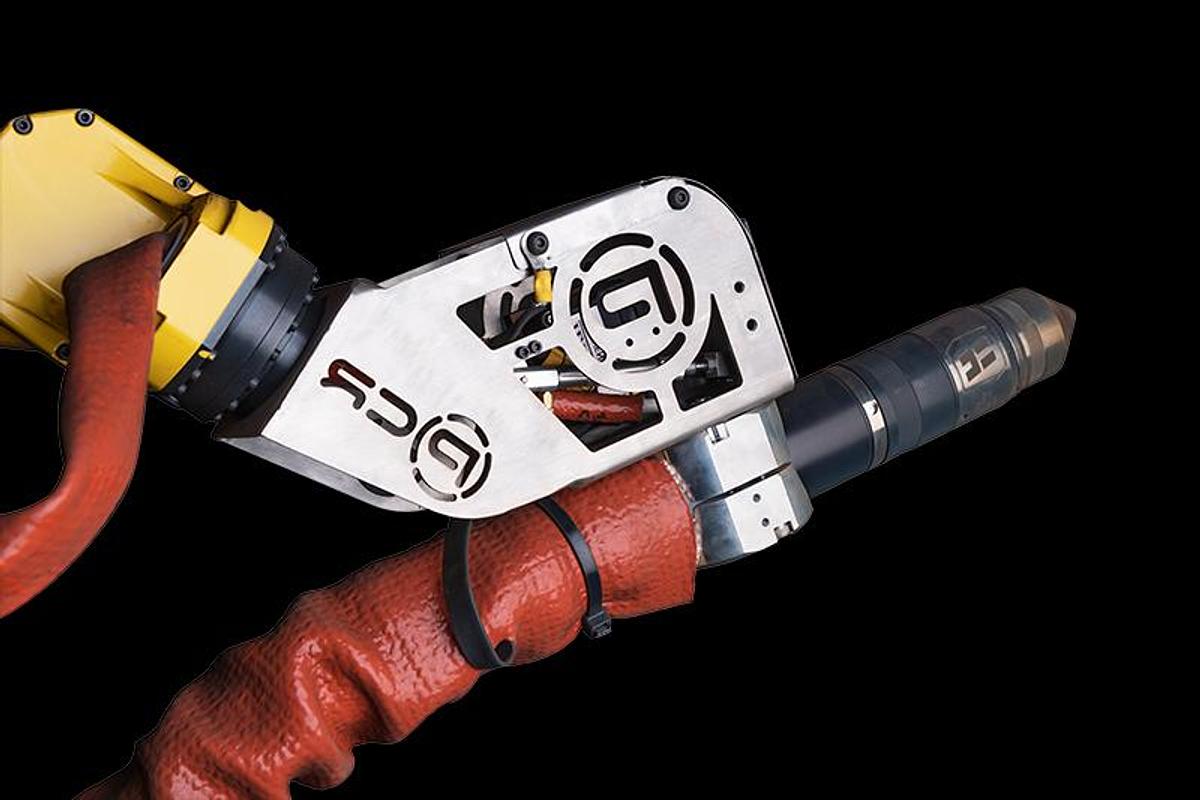

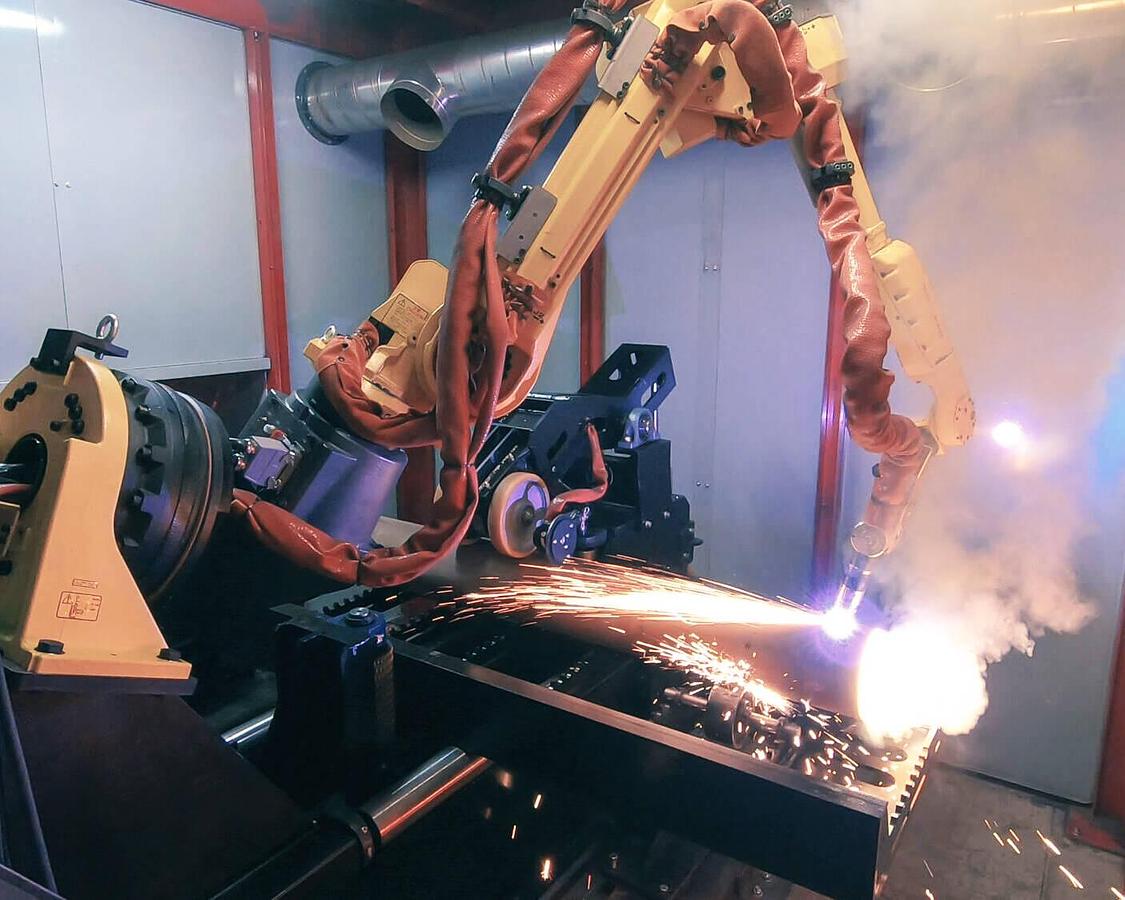

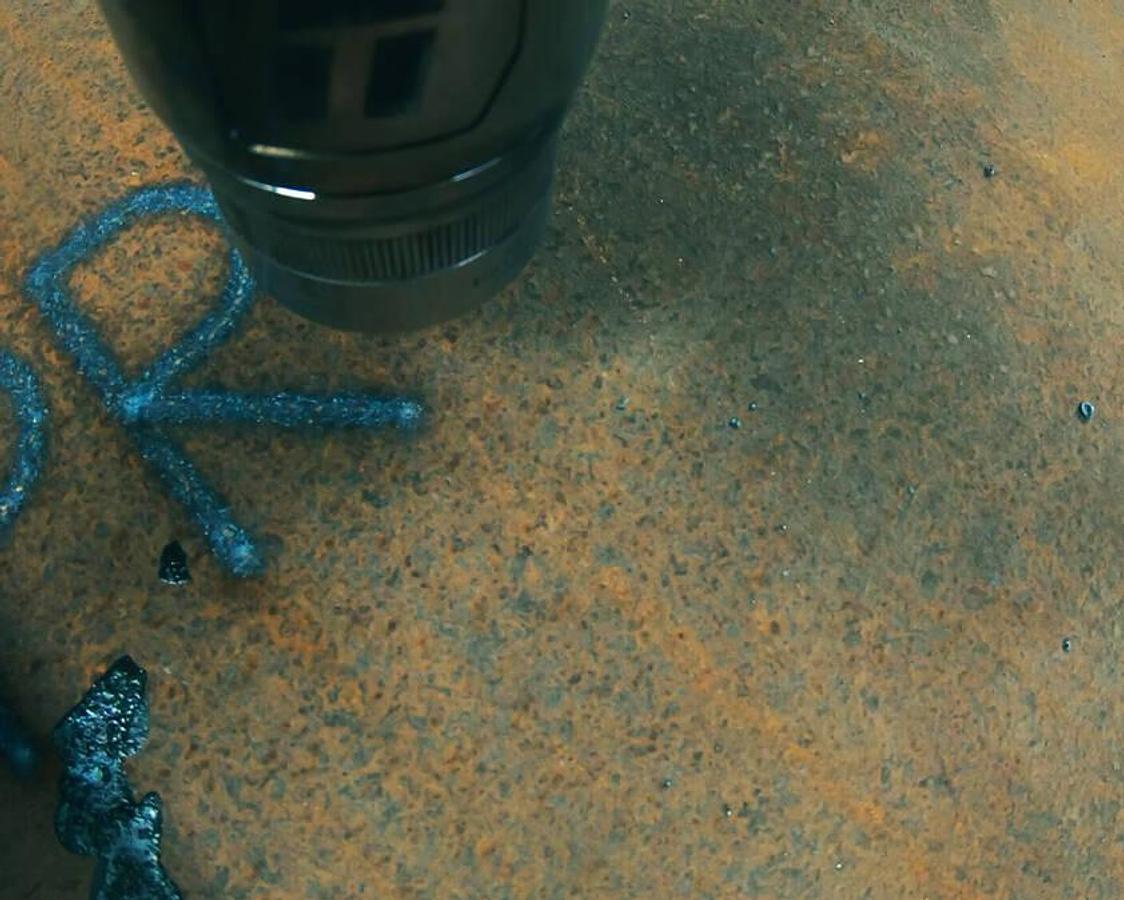

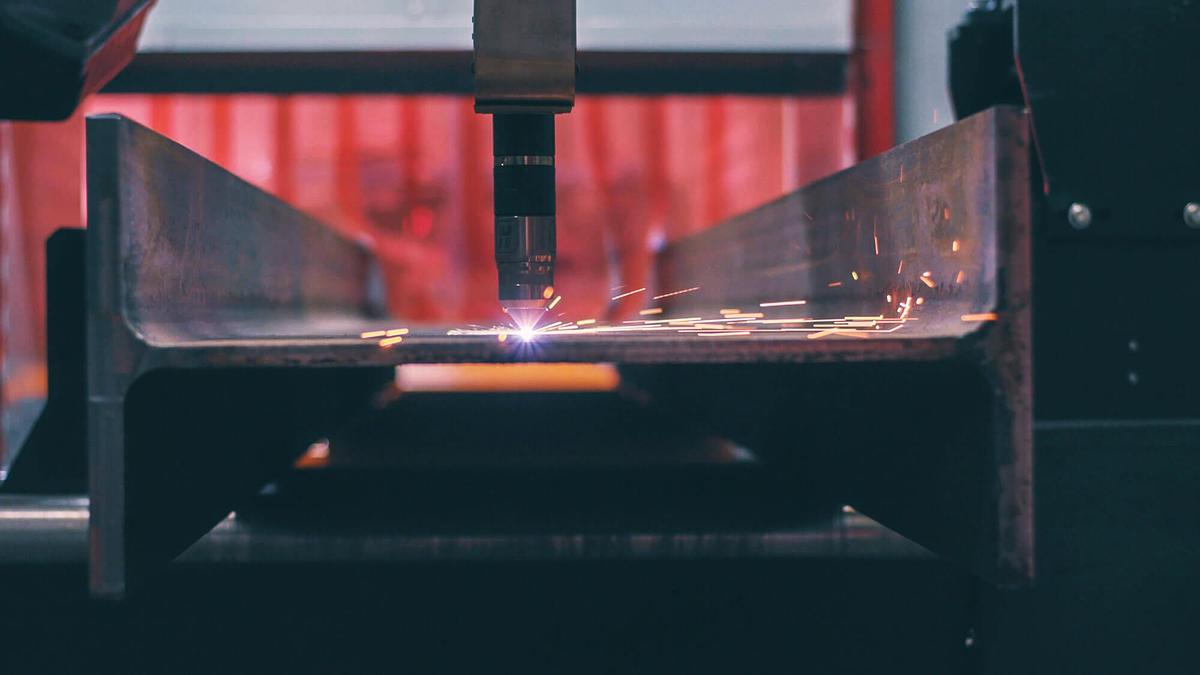

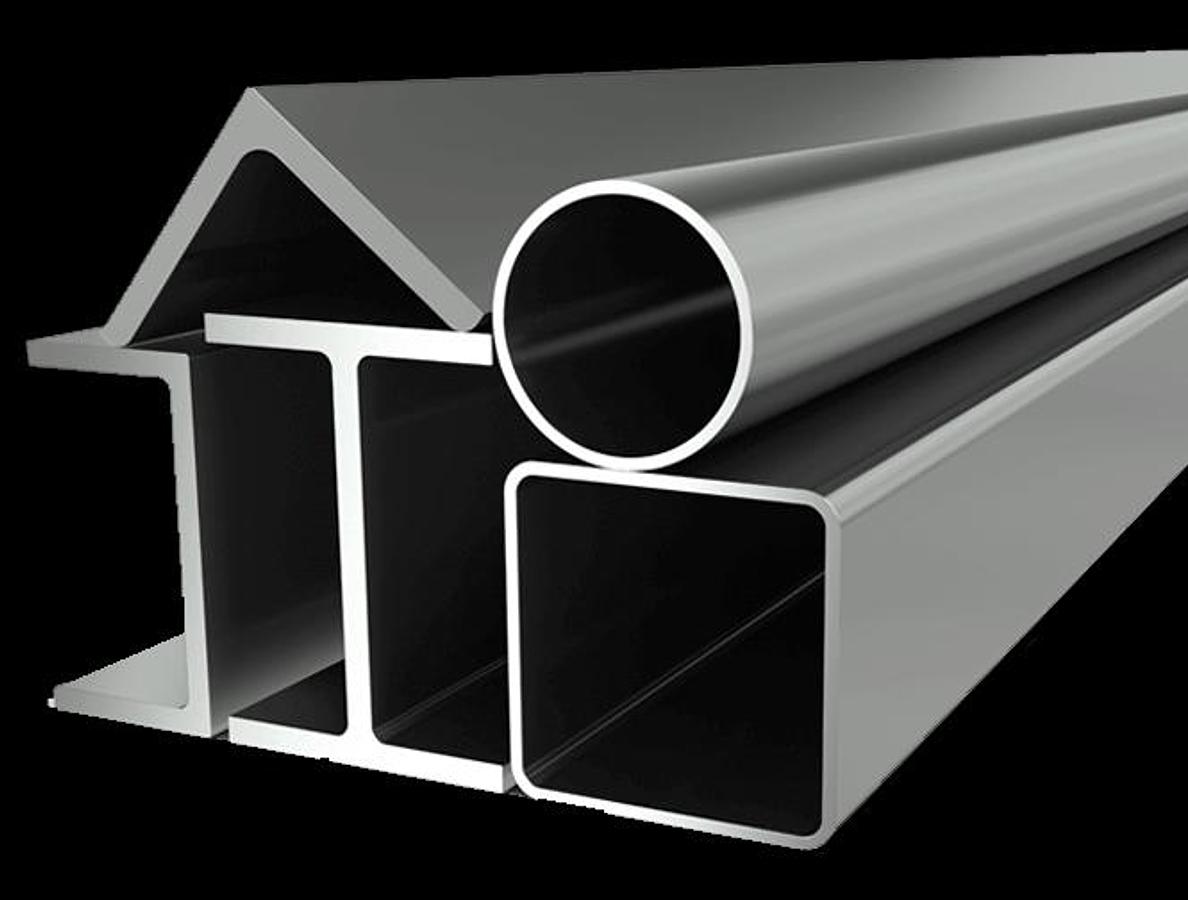

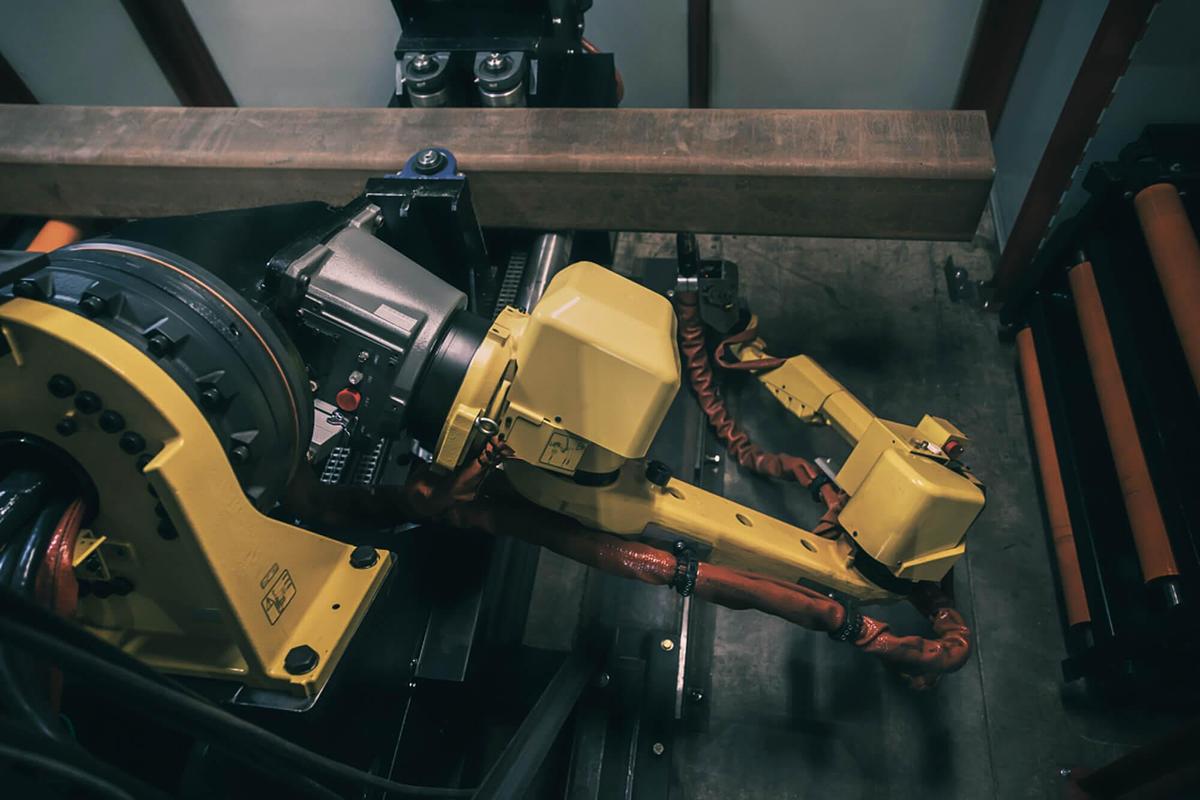

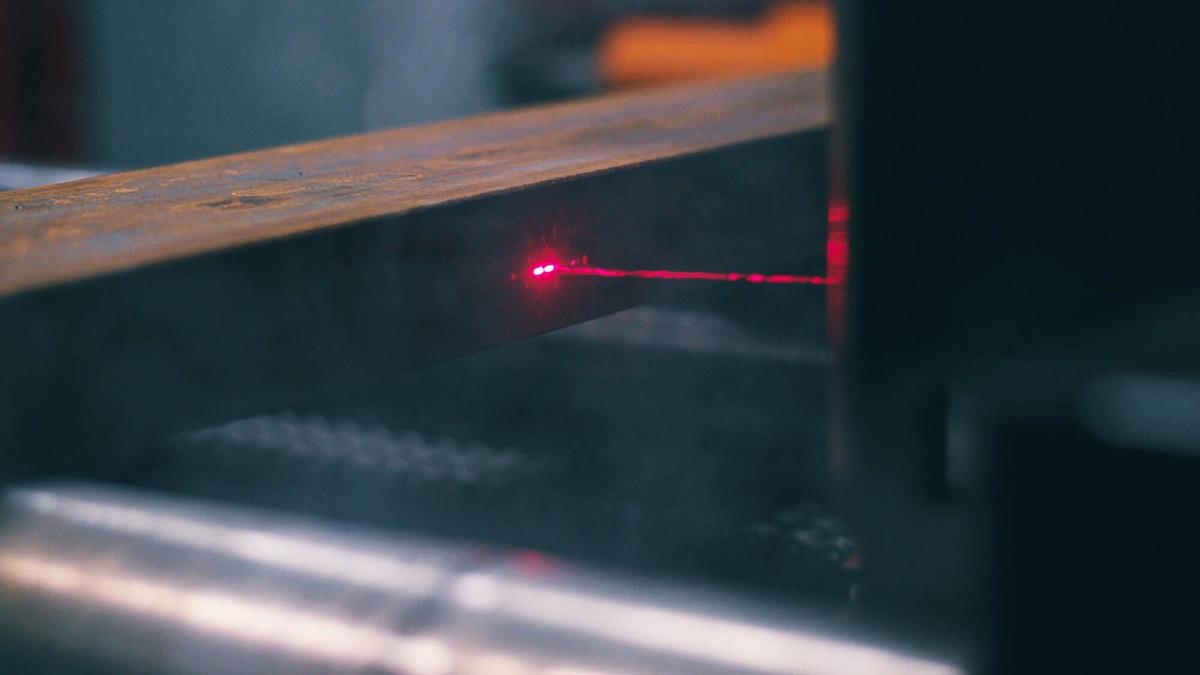

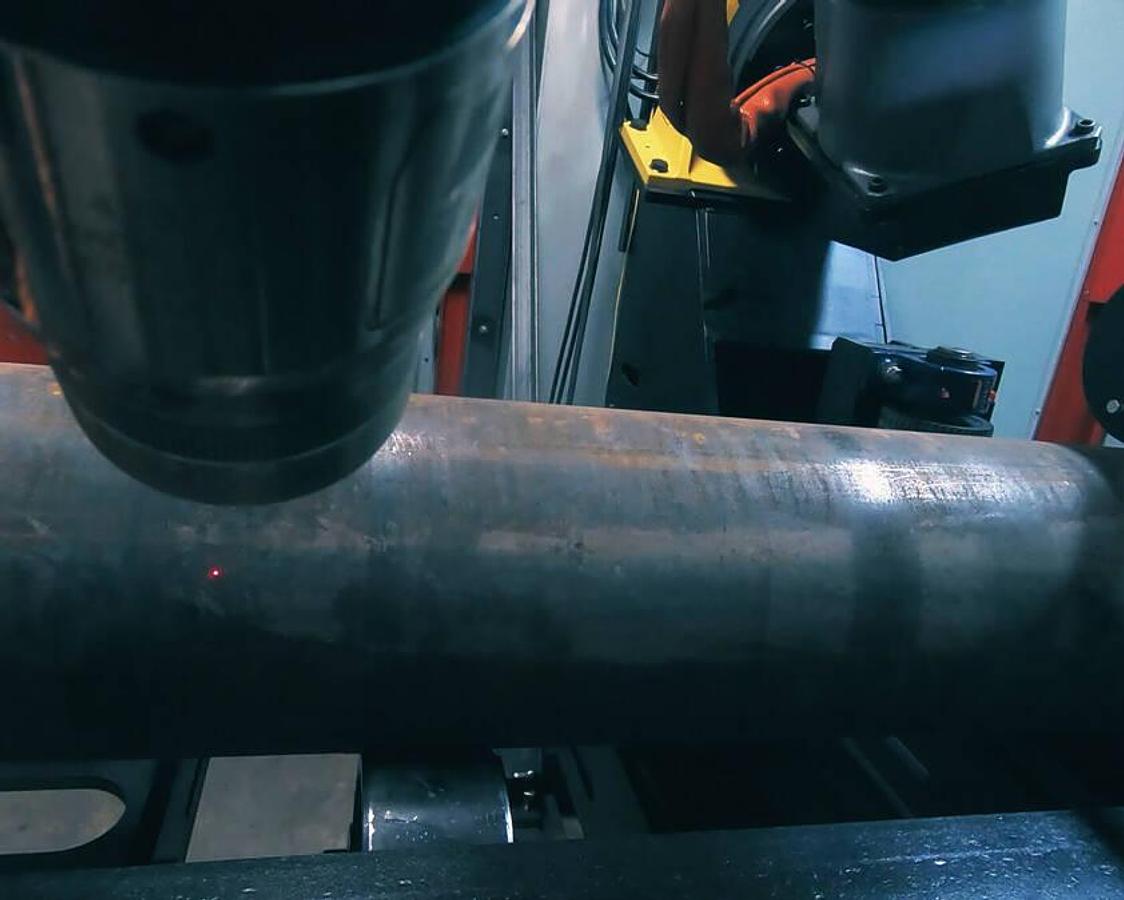

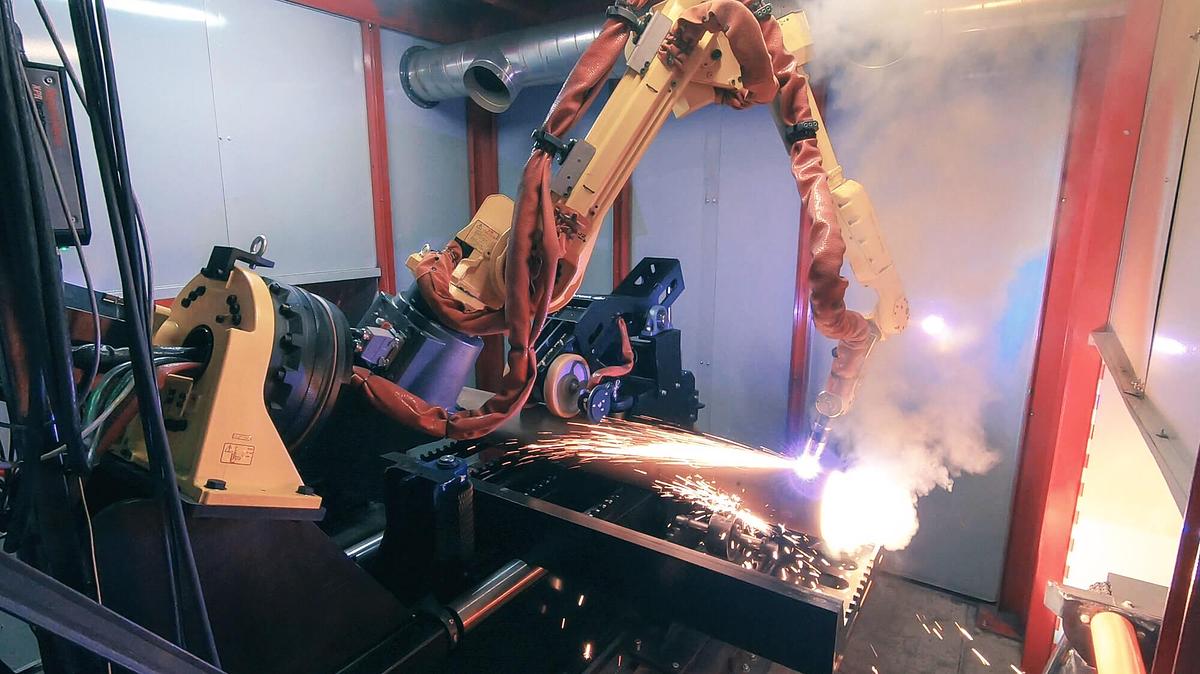

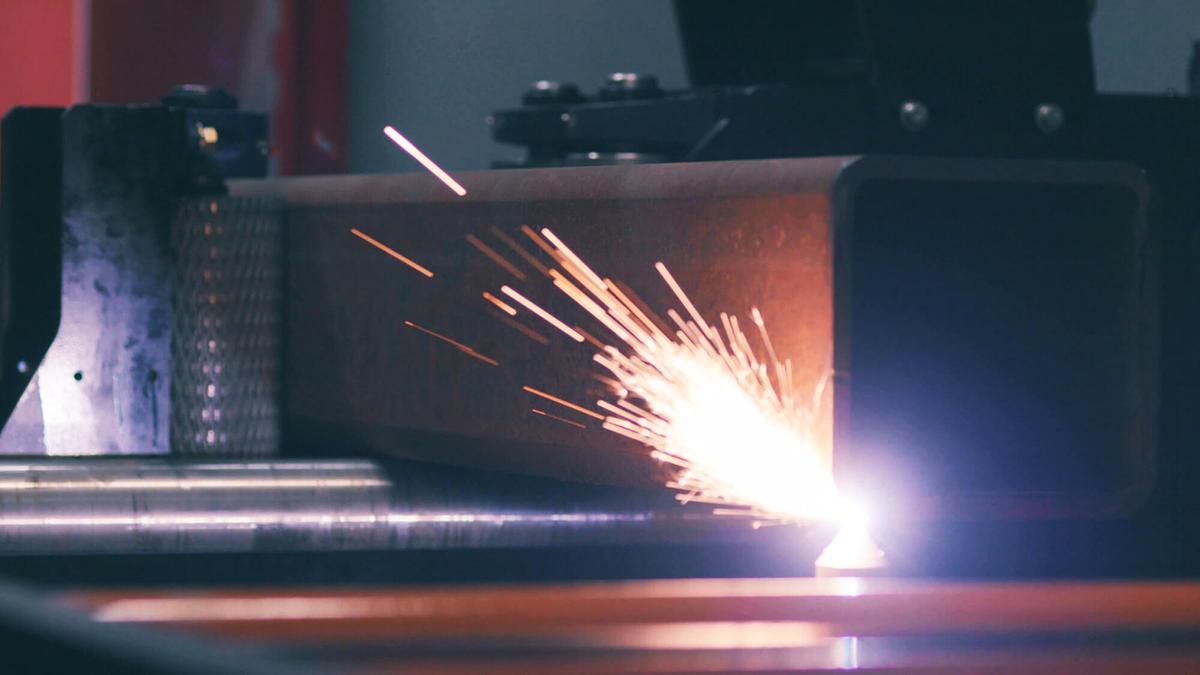

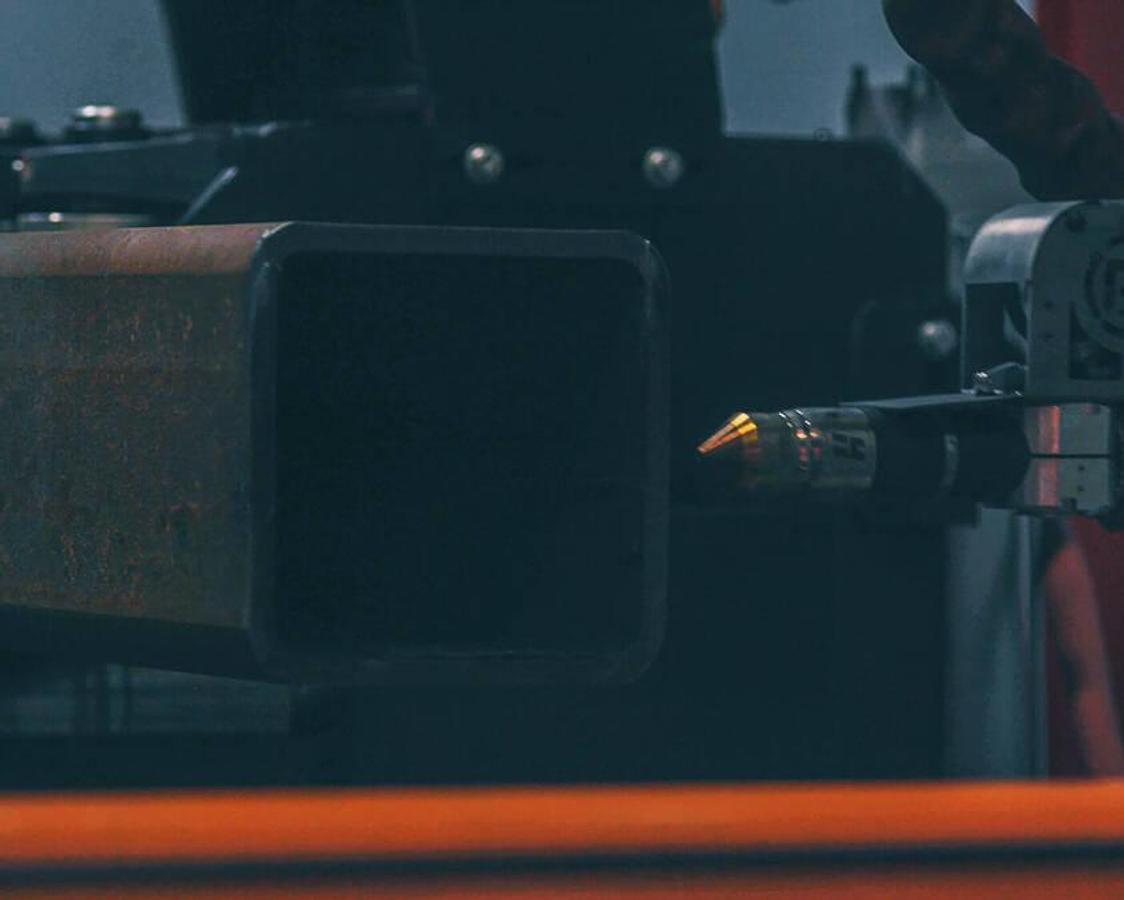

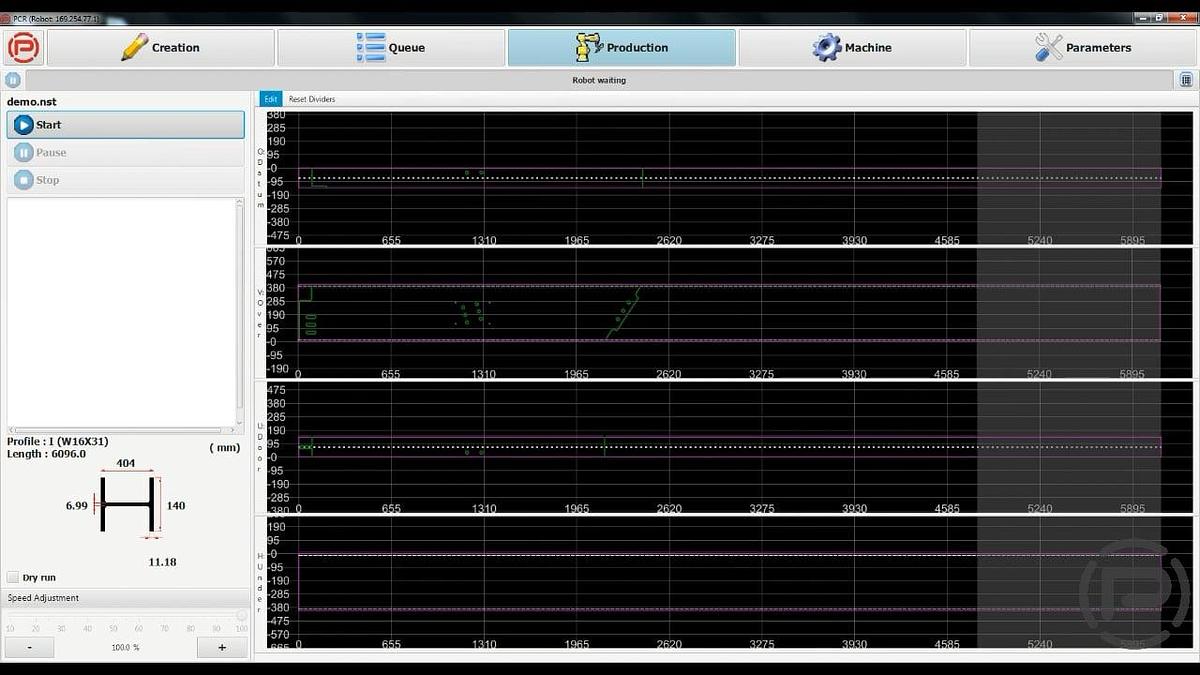

Rundown The PCR42 is our advanced robotic plasma steel cutting solution that combines CNC plasma cutting and torch technology with fully-automated robotics and laser measuring systems for best-in-class structural steel cutting, that delivers the perfect blend of speed, precision, and complete 7-axis operation. Up to 10x Productivity Increase 7-Axis Operations Small Footprint & Flexible Layout Processing Material Types, Cuts & Sizes Types: S-Shape, W-Shape, HP-Shape, C-Shape, MC-Shape, L-Shape, ST-Shape, P-Shape, M-Shape, PL-Shape, HSS-Rectangle & HSS-Square Cuts: Copes & Notches, Holes & Slots, Compound Angle Cuts, Weld Prep (45 degrees), Beam Splitting & Scribing and Marking **Hypertherm XPR 300 can pierce up to 1-3/4” and edge start 3” PCR42 Capabilities 4 Face Processing The PCR42 can cut features onto 4 face profiles including slots, holes, copes and markings. Scribing & Layout Reduce costly fitting errors with the added benefit of scribing, layout and markings. Interface The Easy-to-use interface uses DSTV (NC1) files with no need for macros or other post process and accepts files directly from 3D detailing softwares such as Tekla and SDS 2. Measurement Systems The PCR42 is equipped with an advanced laser measuring systems and rotary encoder, able to determine material length and deviations resulting in optimal cutting accuracy. 2 Zone Processing Fanuc 7 rotary axis provides the PCR42 with the added capability of 2 zone processing, reducing material indexing. 4 Face Operation Non Contact Measuring Easy To Use PCR42 at McCarthy Simple to Use PCR Interface

Specifications

ManufacturerPRODEVCO
ConditionNew
SizesI-Beam Up To 48″ & HSS Rectangle Up To 20″ x 24″
